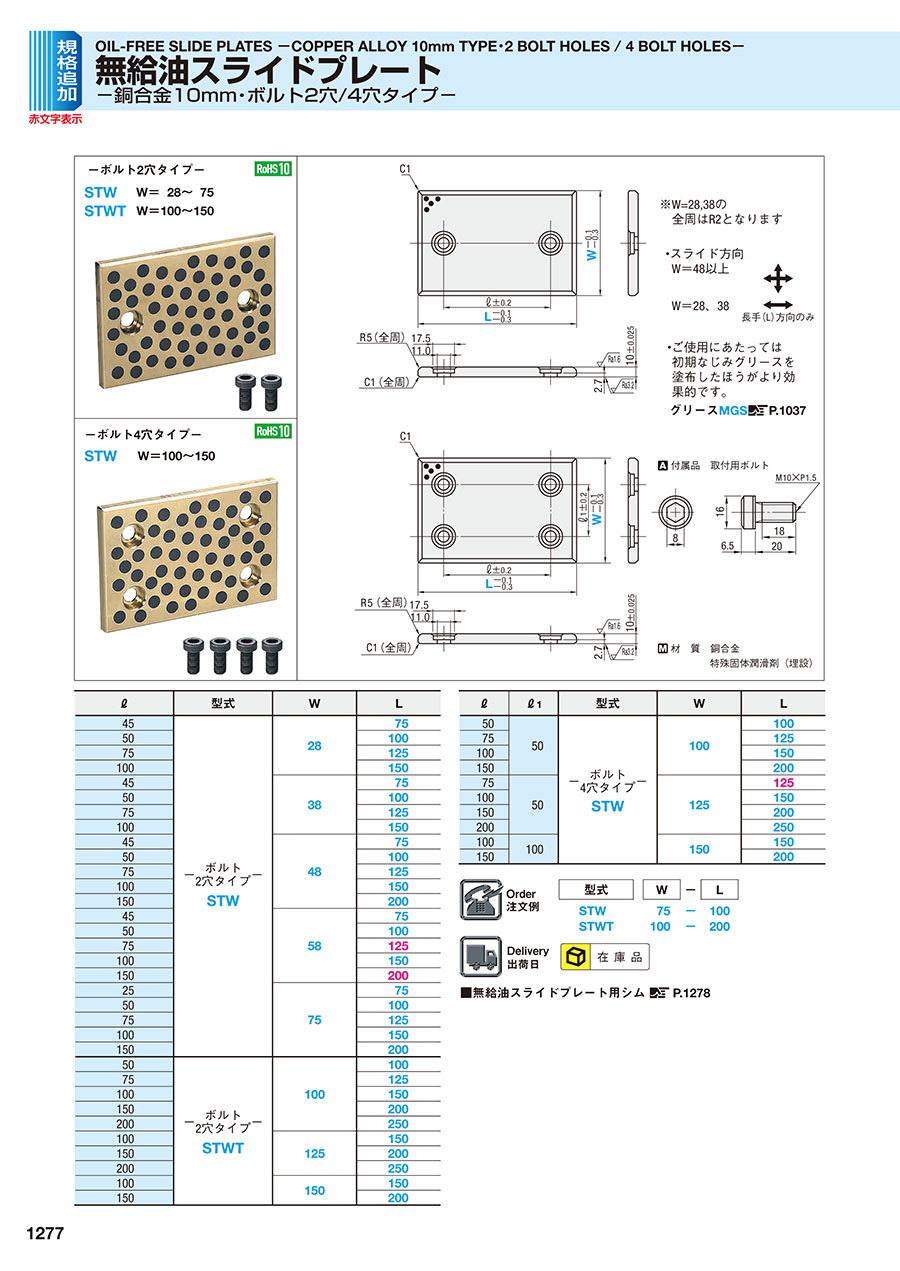

<h3 class="m-h3--wysiwyg">外形図・製品仕様</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="無給油スライドプレート－銅合金10mm・ボルト2穴/4穴タイプ－ " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110100178420/110100178420_001_20230801115851.gif" /></div></div><p>&nbsp;※&nbsp;W=28,38の全周はR2となります</p><p>&bull;スライド方向<br />W＝48以上<br />W＝28、38</p><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="無給油スライドプレート－銅合金10mm・ボルト2穴/4穴タイプ－ " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110100178420/110100178420_002_20230801115851.gif" /></div></div><p>長手（L）方向のみ<br />&bull;ご使用にあたっては初期なじみグリースを塗布したほうがより効果的です。<br />グリースMGS<span class="m_sp8"></span><a href="https://jp.c.misumi-ec.com/book/MSM1_P05/digitalcatalog.html?page_num=1037" target="_blank"> <span class="m-linkWin">P.1037</span></a></p><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="無給油スライドプレート－銅合金10mm・ボルト2穴/4穴タイプ－ " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110100178420/110100178420_003_20230801115851.gif" /></div></div><p><span class="m_sp4"></span>&nbsp;付属品 取付用ボルト</p><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="無給油スライドプレート－銅合金10mm・ボルト2穴/4穴タイプ－ " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110100178420/110100178420_004_20230801115851.gif" /></div></div><table class="m-defaultTable u-wauto" summary="無給油スライドプレート－銅合金10mm・ボルト2穴/4穴タイプ－ Sheet2"><tbody><tr><td style="border-Left: 0px solid;border-Top: 0px solid;border-Right: 0px solid;border-Bottom: 0px solid;"><span class="m_sp1"></span>&nbsp;材質</td><td style="border-Left: 0px solid;border-Top: 0px solid;border-Right: 0px solid;border-Bottom: 0px solid;">銅合金</td></tr><tr><td style="border-Left: 0px solid;border-Top: 0px solid;border-Right: 0px solid;border-Bottom: 0px solid;">&nbsp;</td><td style="border-Left: 0px solid;border-Top: 0px solid;border-Right: 0px solid;border-Bottom: 0px solid;">特殊固体潤滑剤（埋設）</td></tr></tbody></table><h3 class="m-h3--wysiwyg">規格表</h3><table class="m-table" summary="無給油スライドプレート－銅合金10mm・ボルト2穴/4穴タイプ－ Spec2"><colgroup><col width="20.2%" /><col width="39.5%" /><col width="20.2%" /><col width="20.2%" /></colgroup><tbody><tr><th style="text-align: center;border-Left: 0px solid;">ℓ</th><th style="text-align: center;">型式</th><th style="text-align: center;">W</th><th style="text-align: center;border-Right: 0px solid;">L</th></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">45</td><td rowspan="23" style="text-align: center;border-Bottom: 0px solid;">ーボルト<br />2穴タイプー<br /><span class="fontType">STW</span></td><td rowspan="4" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">28</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">75</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">50</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">100</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">75</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">125</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">100</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">150</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">45</td><td rowspan="4" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">38</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">75</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">50</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">100</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">75</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">125</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">100</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">150</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">45</td><td rowspan="5" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">48</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">75</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">50</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">100</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">75</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">125</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">100</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">150</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">150</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">200</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">45</td><td rowspan="5" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">58</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">75</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">50</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">100</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">75</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontNote">125</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">100</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">150</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">150</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontNote">200</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">25</td><td rowspan="5" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">75</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">75</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">50</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">100</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">75</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">125</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">100</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">150</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">150</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">200</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">50</td><td rowspan="10" style="text-align: center;border-Bottom: 0px solid;">ーボルト<br />2穴タイプー<br /><span class="fontType">STWT</span></td><td rowspan="5" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">100</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">100</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">75</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">125</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">100</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">150</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">150</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">200</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">200</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">250</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">100</td><td rowspan="3" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">125</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">150</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">150</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">200</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">200</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">250</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">100</td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">150</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">150</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">150</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">200</span></td></tr></tbody></table><table class="m-table" summary="無給油スライドプレート－銅合金10mm・ボルト2穴/4穴タイプ－ Spec1"><colgroup><col width="16.6%" /><col width="16.6%" /><col width="33.8%" /><col width="16.6%" /><col width="16.6%" /></colgroup><tbody><tr><th style="text-align: center;border-Left: 0px solid;">ℓ</th><th style="text-align: center;">ℓ1</th><th style="text-align: center;">型式</th><th style="text-align: center;">W</th><th style="text-align: center;border-Right: 0px solid;">L</th></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">50</td><td class="coloredCell" rowspan="4" style="text-align: center;border-Bottom: 0px solid;">50</td><td rowspan="10" style="text-align: center;border-Bottom: 0px solid;">ーボルト<br />4穴タイプー<br /><span class="fontType">STW</span></td><td rowspan="4" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">100</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">100</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">75</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">125</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">100</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">150</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">150</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">200</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">75</td><td class="coloredCell" rowspan="4" style="text-align: center;border-Bottom: 0px solid;">50</td><td rowspan="4" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">125</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontNote">125</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">100</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">150</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">150</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">200</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">200</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">250</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">100</td><td class="coloredCell" rowspan="2" style="text-align: center;border-Bottom: 0px solid;">100</td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">150</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">150</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">150</td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">200</span></td></tr></tbody></table><h3 class="m-h3--wysiwyg">注文例</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="無給油スライドプレート－銅合金10mm・ボルト2穴/4穴タイプ－ " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110100178420/110100178420_005_20230801115851.gif" /></div></div><h3 class="m-h3--wysiwyg">出荷日</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="無給油スライドプレート－銅合金10mm・ボルト2穴/4穴タイプ－ " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110100178420/110100178420_006_20230801115851.gif" /></div></div><h3 class="m-h3--wysiwyg">関連情報</h3><p>■無給油スライドプレート用シム&nbsp;<span class="m_sp8"></span><a href="https://jp.c.misumi-ec.com/book/MSM1_P05/digitalcatalog.html?page_num=1278" target="_blank"> <span class="m-linkWin">P.1278</span></a></p>
