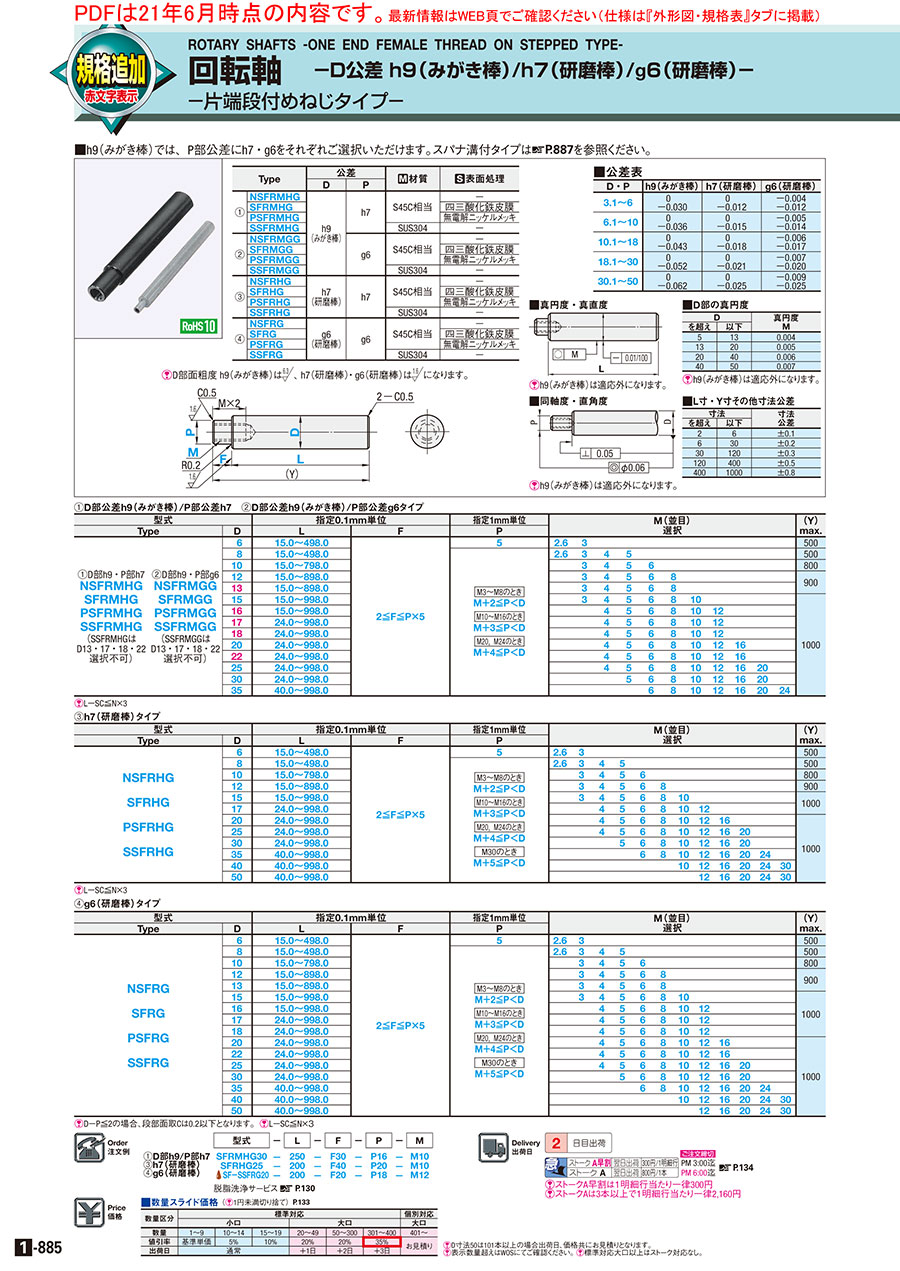

<h3 class="m-h3--wysiwyg">外形図</h3><div class="pad_b15"><div class="pad_b15" style="position: relative;"><img alt="回転軸　片端段付めねじタイプ 外形図" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110302550650/110302550650_001_20230801115852.gif" /><div style="position: absolute; top: 0px; left: 0px;">■標準タイプ</div><div style="position: absolute; top: 0px; left: 480px;">■スパナ溝付タイプ</div></div><span class="fontNote">[ ! ]</span>D部面粗度h9（みがき棒）は<img alt="回転軸　片端段付めねじタイプ 外形図" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110302550650/110302550650_003_20230801115852.gif" />、h7（研磨棒）・g6（研磨棒）は<img alt="回転軸　片端段付めねじタイプ 外形図" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110302550650/110302550650_004_20230801115852.gif" />になります。<br /><span class="fontNote">[ ! ]</span>高硬度ステンレスはセンター穴がある場合がございます。</div><div class="pad_b15">■公差表<div style="display: flex; gap: 10px;"><div><table cellspacing="0" rules="all"><tbody><tr><td align="center" class="headerCell">D・P</td><td align="center" class="headerCell">h9(みがき棒)</td><td align="center" class="headerCell">h7(研磨棒)</td><td align="center" class="headerCell">g6(研磨棒)</td></tr><tr><td class="bodyCell"><font class="fontType">3.1</font><font class="fontType">〜</font><font class="fontType">6</font></td><td class="coloredCell">0<br />&minus;0.030</td><td class="coloredCell">0<br />&minus;0.012</td><td align="center" class="coloredCell">&minus;0.004<br />&minus;0.012</td></tr><tr><td class="bodyCell"><font class="fontType">6.1</font><font class="fontType">〜</font><font class="fontType">10</font></td><td class="coloredCell">0<br />&minus;0.036</td><td class="coloredCell">0<br />&minus;0.015</td><td align="center" class="coloredCell">&minus;0.005<br />&minus;0.014</td></tr><tr><td align="center" class="bodyCell"><font class="fontType">10.1</font><font class="fontType">〜</font><font class="fontType">18</font></td><td class="coloredCell">0<br />&minus;0.043</td><td class="coloredCell">0<br />&minus;0.018</td><td align="center" class="coloredCell">&minus;0.006<br />&minus;0.017</td></tr><tr><td class="bodyCell"><font class="fontType">18.1</font><font class="fontType">〜</font><font class="fontType">30</font></td><td class="coloredCell">0<br />&minus;0.052</td><td class="coloredCell">0<br />&minus;0.021</td><td align="center" class="coloredCell">&minus;0.007<br />&minus;0.020</td></tr><tr><td class="bodyCell"><font class="fontType">30</font><font class="fontType">.1</font><font class="fontType">〜</font><font class="fontType">50</font></td><td class="coloredCell">0<br />&minus;0.062</td><td class="coloredCell">0<br />&minus;0.025</td><td align="center" class="coloredCell">&minus;0.009<br />&minus;0.025</td></tr></tbody></table></div><div><div class="pad_b15" style="position: relative;"><img alt="回転軸　片端段付めねじタイプ 外形図" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110302550650/110302550650_002_20230801115852.gif" /><div style="position: absolute; top: 0px; left: 50px;">■真円度・真直度</div><div style="position: absolute; top: 0px; left: 280px;">■同軸度・直角度</div></div></div></div></div><div class="pad_b15"><div style="display: flex; gap: 30px;"><div>■D部真円度<table border="2" cellspacing="0" rules="all"><tbody><tr><td align="center" class="headerCell" colspan="2">D</td><td align="center" class="headerCell" rowspan="2">真円度<br />M</td></tr><tr><td align="center" class="headerCell">を超え</td><td align="center" class="headerCell">以下</td></tr><tr><td align="center" class="coloredCell">5</td><td align="center" class="coloredCell">13</td><td align="center" class="coloredCell">0.004</td></tr><tr><td align="center" class="coloredCell">13</td><td align="center" class="coloredCell">20</td><td align="center" class="coloredCell">0.005</td></tr><tr><td align="center" class="coloredCell">20</td><td align="center" class="coloredCell">40</td><td align="center" class="coloredCell">0.006</td></tr><tr><td align="center" class="coloredCell">40</td><td align="center" class="coloredCell">50</td><td align="center" class="coloredCell">0.007</td></tr></tbody></table></div><div>■L寸・その他の寸法公差<table border="2" cellspacing="0" rules="all"><tbody><tr><td align="center" class="headerCell" colspan="2">寸法</td><td align="center" class="headerCell" rowspan="2">寸法<br />公差</td></tr><tr><td align="center" class="headerCell">を超え</td><td align="center" class="headerCell">以下</td></tr><tr><td align="center" class="coloredCell">2</td><td align="center" class="coloredCell">6</td><td align="center" class="coloredCell">&plusmn;0.1</td></tr><tr><td align="center" class="coloredCell">6</td><td align="center" class="coloredCell">30</td><td align="center" class="coloredCell">&plusmn;0.2</td></tr><tr><td align="center" class="coloredCell">30</td><td align="center" class="coloredCell">120</td><td align="center" class="coloredCell">&plusmn;0.3</td></tr><tr><td align="center" class="coloredCell">120</td><td align="center" class="coloredCell">400</td><td align="center" class="coloredCell">&plusmn;0.5</td></tr><tr><td align="center" class="coloredCell">400</td><td align="center" class="coloredCell">1000</td><td align="center" class="coloredCell">&plusmn;0.8</td></tr></tbody></table></div></div><span class="fontNote">[ ! ]</span>h9（みがき棒）は、D部真円度、真直度、同軸度、直角度は適応外となります。</div><div class="pad_b15"><table border="0" cellspacing="0"><tbody><tr><td align="center" class="headerCell" colspan="3" style="border-width: 1px 1px 0px 1px;">Type</td><td align="center" class="headerCell" colspan="2">公差</td><td align="center" class="headerCell" rowspan="2">[ M ]材質</td><td align="center" class="headerCell" rowspan="2">[ S ]表面処理</td></tr><tr><td align="center" class="headerCell" style="border-width: 0px 1px 1px 1px;">&nbsp;</td><td align="center" class="headerCell">標準タイプ</td><td align="center" class="headerCell">スパナ溝付タイプ</td><td align="center" class="headerCell">D</td><td align="center" class="headerCell">P</td></tr><tr><td align="center" class="bodyCell" rowspan="4">①</td><td class="bodyCell"><span class="fontType">NSFRMHG</span></td><td class="bodyCell"><span class="fontType">NSFRMHGS</span></td><td align="center" class="bodyCell" rowspan="8">h9<br />(みがき棒)</td><td align="center" class="bodyCell" rowspan="4">h7</td><td align="center" class="bodyCell" rowspan="3">S45C相当</td><td align="center" class="bodyCell">&minus;</td></tr><tr><td class="bodyCell"><span class="fontType">SFRMHG</span></td><td class="bodyCell"><span class="fontType">SFRMHGS</span></td><td align="center" class="bodyCell">四三酸化鉄皮膜</td></tr><tr><td class="bodyCell"><span class="fontType">PSFRMHG</span></td><td class="bodyCell"><span class="fontType">PSFRMHGS</span></td><td align="center" class="bodyCell">無電解ニッケルメッキ</td></tr><tr><td class="bodyCell"><span class="fontType">SSFRMHG</span></td><td class="bodyCell"><span class="fontType">SSFRMHGS</span></td><td align="center" class="bodyCell">SUS304</td><td align="center" class="bodyCell">&minus;</td></tr><tr><td align="center" class="bodyCell" rowspan="4">②</td><td class="bodyCell"><span class="fontType">NSFRMGG</span></td><td class="bodyCell"><span class="fontType">NSFRMGGS</span></td><td align="center" class="bodyCell" rowspan="4">g6</td><td align="center" class="bodyCell" rowspan="3">S45C相当</td><td align="center" class="bodyCell">&minus;</td></tr><tr><td class="bodyCell"><span class="fontType">SFRMGG</span></td><td class="bodyCell"><span class="fontType">SFRMGGS</span></td><td align="center" class="bodyCell">四三酸化鉄皮膜</td></tr><tr><td class="bodyCell"><span class="fontType">PSFRMGG</span></td><td class="bodyCell"><span class="fontType">PSFRMGGS</span></td><td align="center" class="bodyCell">無電解ニッケルメッキ</td></tr><tr><td class="bodyCell"><span class="fontType">SSFRMGG</span></td><td class="bodyCell"><span class="fontType">SSFRMGGS</span></td><td align="center" class="bodyCell">SUS304</td><td align="center" class="bodyCell">&minus;</td></tr><tr><td align="center" class="bodyCell" rowspan="4">③</td><td class="bodyCell"><span class="fontType">NSFRHG</span></td><td class="bodyCell"><span class="fontType">NSFRHGS</span></td><td align="center" class="bodyCell" rowspan="4">h7<br />(研磨棒)</td><td align="center" class="bodyCell" rowspan="4">h7</td><td align="center" class="bodyCell" rowspan="3">S45C相当</td><td align="center" class="bodyCell">&minus;</td></tr><tr><td class="bodyCell"><span class="fontType">SFRHG</span></td><td class="bodyCell"><span class="fontType">SFRHGS</span></td><td align="center" class="bodyCell">四三酸化鉄皮膜</td></tr><tr><td class="bodyCell"><span class="fontType">PSFRHG</span></td><td class="bodyCell"><span class="fontType">PSFRHGS</span></td><td align="center" class="bodyCell">無電解ニッケルメッキ</td></tr><tr><td class="bodyCell"><span class="fontType">SSFRHG</span></td><td class="bodyCell"><span class="fontType">SSFRHGS</span></td><td align="center" class="bodyCell">SUS304</td><td align="center" class="bodyCell">&minus;</td></tr><tr><td align="center" class="bodyCell" rowspan="5">④</td><td class="bodyCell"><span class="fontType">NSFRG</span></td><td class="bodyCell"><span class="fontType">NSFRGS</span></td><td align="center" class="bodyCell" rowspan="5">g6<br />(研磨棒)</td><td align="center" class="bodyCell" rowspan="5">g6</td><td align="center" class="bodyCell" rowspan="3">S45C相当</td><td align="center" class="bodyCell">&minus;</td></tr><tr><td class="bodyCell"><span class="fontType">SFRG</span></td><td class="bodyCell"><span class="fontType">SFRGS</span></td><td align="center" class="bodyCell">四三酸化鉄皮膜</td></tr><tr><td class="bodyCell"><span class="fontType">PSFRG</span></td><td class="bodyCell"><span class="fontType">PSFRGS</span></td><td align="center" class="bodyCell">無電解ニッケルメッキ</td></tr><tr><td class="bodyCell"><span class="fontType">SSFRG</span></td><td class="bodyCell"><span class="fontType">SSFRGS</span></td><td align="center" class="bodyCell">SUS304</td><td align="center" class="bodyCell">&minus;</td></tr><tr><td class="bodyCell"><span class="fontType">AHFRG</span></td><td class="bodyCell"><span class="fontType">AHFRGS</span></td><td align="center" class="bodyCell">高硬度ステンレス<br />硬度35HRC～</td><td align="center" class="bodyCell">&minus;</td></tr></tbody></table><span class="fontNote">[ ! ]</span>高硬度ステンレスは中心硬度が下がります。材料特性については<a class="VN_scroll" href="#section01">こちら</a>をご覧ください。</div>
