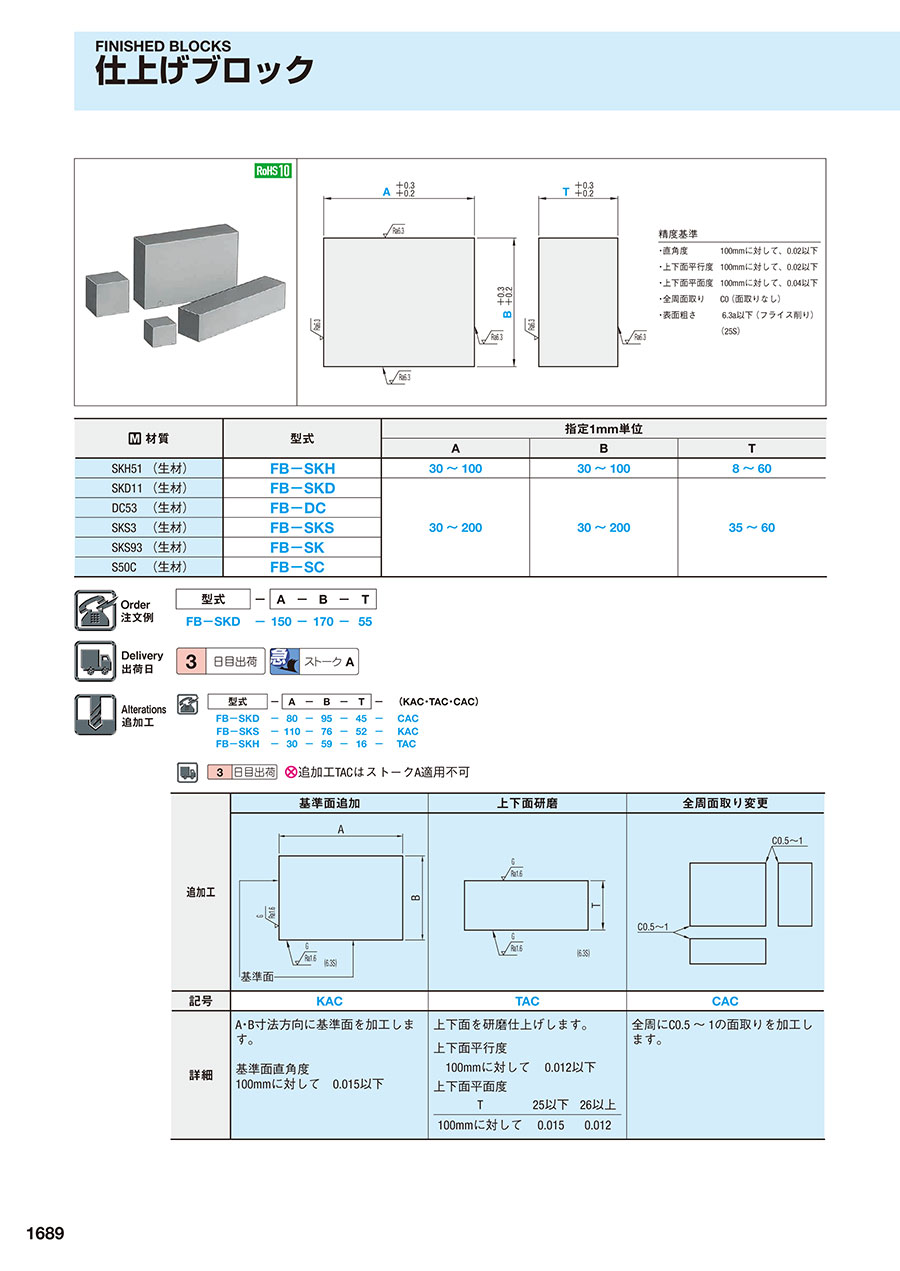

仕上げブロック-SKD材-

仕上げブロック-SKD材-

画像をクリックして拡大イメージを表示する

画像にマウスを合わせてイメージを拡大する

PDFP.1505

型番

商品を一つに絞り込むとこちらに型番が表示されます

FB-SKD-[30-200/1]-[30-200/1]-[35-60/1]

仕上げブロック-SKD材-:関連画像
・材質表
材質型式指定1mm単位
ABT
SKD11 (生材)FB-SKD30~20030~20035~60

仕上げブロック-SKD材-:関連画像

精度基準
・直角度 100mmに対して、0.02以下
・上下面平行度100mmに対して、0.02以下
・上下面平面度100mmに対して、0.04以下
・全周面取り C0 (面取りなし)
・表面粗さ 6.3a以下 (フライス削り)
(25S)
型番
FB-SKD-[30-200/1]-[30-200/1]-[35-60/1]
型番通常単価スライド値引通常
出荷日
RoHSA
(mm)
B
(mm)
T
(mm)

-

3日目 対応30 ~ 20030 ~ 20035 ~ 60

Loading...

  1. 1

規格表


仕上げブロック-SKD材-:関連画像
・規格表
AT¥基準単価
B
30~4041~5051~6061~7071~8081~9091~100101~110111~120121~130131~140141~150151~160161~170171~180181~190191~200
30~4035~402,4602,7702,8803,0003,2103,4203,6003,6604,0604,1804,3504,5604,7804,9304,9805,1305,910
41~502,6703,0003,1003,2103,5203,8504,1104,4204,5604,9305,2605,5505,6205,8505,8806,0606,910
51~602,8803,2103,4203,5203,8504,4204,8004,9905,2605,5806,0406,1806,3706,6106,6706,9007,920
41~5035~402,7703,0003,1003,2103,5203,7304,1104,5304,5605,0405,2605,4705,6805,7305,9806,2106,520
41~503,0003,3103,4203,5204,0004,2904,7505,3205,4305,9106,3706,5206,7006,7807,0007,2307,920
51~603,2103,6303,8103,9604,6004,9605,3206,0006,1806,6907,4507,5407,6507,7508,0108,2608,820
51~6035~402,8803,1003,2103,5203,7604,3604,4804,9305,2805,8205,8906,4206,4806,6906,8406,9107,320
41~503,1003,4203,6304,0204,4205,0405,2005,7706,1806,7806,8807,3007,6007,8008,0408,1008,610
51~603,4203,8104,0204,5004,9905,8306,3406,6407,2407,7707,8908,4008,7108,8509,0309,1909,780
61~7035~403,0003,2103,5203,6304,2704,9005,0405,6706,0106,4506,7806,9107,4207,5907,7507,8408,230
41~503,2103,5204,0204,3005,0505,4905,8006,6307,2007,5008,1108,2008,6408,9209,1209,2209,690
51~603,5203,9604,5004,9005,7306,5806,6407,5907,9908,0808,9509,1809,88010,09010,35010,50011,070
71~8035~403,2103,5203,7604,2704,8705,2305,7006,3706,6307,0207,1707,6208,3708,6208,7608,8809,400
41~503,5204,0004,4205,0505,6706,1006,5707,2007,4808,2508,3808,8909,64010,00010,20010,36010,860
51~603,8504,6004,9905,7306,4806,9707,4508,2508,5609,4609,72010,26011,11011,28011,44011,53011,700
81~9035~403,4203,7304,3604,9005,2305,8306,0106,8707,2707,8408,3408,8008,8909,1509,4809,81010,120
41~503,8504,2905,0405,4906,1006,8207,1707,9308,5509,1809,58010,26010,38010,60010,90011,49011,830
51~604,4204,9605,8306,5806,9707,7808,1109,0909,72010,48010,96011,73011,83012,13012,48013,05013,440
91~10035~403,6004,1104,4805,0405,7006,0106,2207,4807,9008,6709,0609,7809,99010,33010,59010,72010,860
41~504,1104,7505,2005,8006,5707,1707,1508,8009,13010,08010,71011,31011,46012,03012,31012,45012,640
51~604,8005,3206,3406,6407,4508,1108,2309,91010,66011,50012,28012,78013,02013,59013,90014,19014,430
101~11035~403,6604,5304,9305,6706,3706,8707,4808,0108,7009,3709,99010,30010,72011,10011,41011,79012,400
41~504,4205,3205,7706,6307,2007,9308,8009,33010,14010,92011,62012,00012,48012,85013,33013,74014,410
51~604,9906,0006,6407,5908,2509,0909,91010,59011,58012,54013,29013,68014,25014,67015,54015,69016,120
111~12035~404,0604,5605,2806,0106,6307,2707,9008,7009,0609,78010,20010,92011,55011,92012,21012,40013,120
41~504,5605,4306,1807,2007,4808,5509,13010,14010,77011,83012,21013,05013,50013,81014,20014,49015,270
51~605,2606,1807,2407,9908,5609,72010,66011,58012,45013,56013,90014,88015,37015,82016,20016,50017,490
121~13035~404,1805,0405,8206,4507,0207,8408,6709,3709,78010,08010,53011,55012,16012,72013,14013,41013,750
41~504,9305,9106,7807,5008,2509,18010,08010,92011,83011,85012,30013,38014,16014,56015,09015,60015,790
51~605,5806,6907,7708,0809,46010,48011,50012,54013,56013,75014,07015,52016,15016,65017,17017,79018,450
131~14035~404,3505,2605,8906,7807,1708,3409,0609,99010,20010,53011,32012,01013,03013,26013,93014,32014,830
41~505,2606,3706,8808,1108,3809,58010,71011,62012,21012,30013,18014,08015,15015,45016,24016,69017,520
51~606,0407,4507,8908,9509,72010,96012,28013,29013,90014,07015,04015,78017,32017,58018,54019,08019,950
141~15035~404,5605,4706,4206,9107,6208,8009,78010,30010,92011,55012,01012,90013,50013,93014,55014,86015,570
41~505,5506,5207,3008,2008,89010,26011,31012,00013,05013,38014,08015,19015,73016,18016,50017,35018,490
51~606,1807,5408,4009,18010,26011,73012,78013,68014,88015,52015,78016,68017,95018,58019,35019,75021,240
151~16035~404,7805,6806,4807,4208,3708,8909,99010,72011,55012,16013,03013,50014,37015,24015,54015,84016,240
41~505,6206,7007,6008,6409,64010,38011,46012,48013,50014,16015,15015,73016,69017,74018,06018,43019,600
51~606,3707,6508,7109,88011,11011,83013,02014,25015,37016,15017,32017,95019,09020,16020,53021,00022,360
161~17035~404,9305,7306,6907,5908,6209,15010,33011,10011,92012,72013,26013,93015,24015,94016,39016,51017,530
41~505,8506,7807,8008,92010,00010,60012,03012,85013,81014,56015,45016,18017,74018,15018,43019,24020,370
51~606,6107,7508,85010,09011,28012,13013,59014,67015,82016,65017,58018,58020,16020,43020,79021,97023,200
171~18035~404,9805,9806,8407,7508,7609,48010,59011,41012,21013,14013,93014,55015,54016,39016,56017,49018,330
41~505,8807,0008,0409,12010,20010,90012,31013,33014,20015,09016,24016,50018,06018,43018,48020,31021,240
51~606,6708,0109,03010,35011,44012,48013,90015,54016,20017,17018,54019,35020,53020,79021,03023,13024,210
181~19035~405,1306,2106,9107,8408,8809,81010,72011,79012,40013,41014,32014,86015,84016,51017,49018,12019,000
41~506,0607,2308,1009,22010,36011,49012,45013,74014,49015,60016,69017,35018,43019,24020,31021,09022,120
51~606,9008,2609,19010,50011,53013,05014,19015,69016,50017,79019,08019,75021,00021,97023,13024,04025,270
191~20035~405,9106,5207,3208,2309,40010,12010,86012,40013,12013,75014,83015,57016,24017,53018,33019,00019,950
41~506,9107,9208,6109,69010,86011,83012,64014,41015,27015,79017,52018,49019,60020,37021,24022,12023,160
51~607,9208,8209,78011,07011,70013,44014,43016,12017,49018,45019,95021,24022,36023,20024,21025,27026,410

数量スライド価格1円未満切り捨て)
数量区分標準対応個別対応 大口
数 量1~910~3031~
値引率基準単価5%お見積り
表示数量超えはWOSにてご確認ください。

納期


800円/1本
3本以上で1明細行当たり一律2,160円

運送所要日数はこちら

追加工

追加工価格も数量スライド適用 こちら
仕上げブロック-SKD材-:関連画像



基本情報

材質 SKD11
