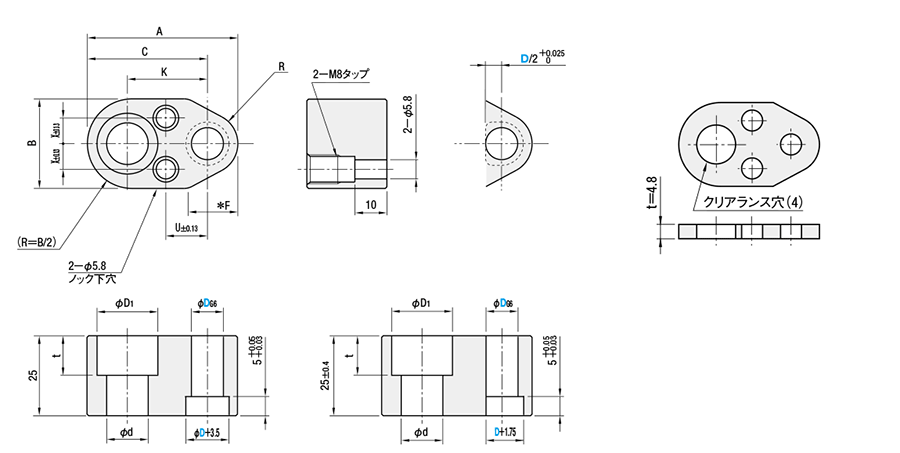

<h3 class="m-h3--wysiwyg">外形図・製品仕様</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="刃合せ用ボルト一本締めタイプショルダー式リテーナー　（厚さ２５mm） 外形図" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/250000001211/250000001211_002_20230801115904.gif" /></div></div><p><span class="m_sp10"></span>単品&nbsp;バッキングプレート：ORBP／シムプレート：ORSP<br /><span class="m_sp8"></span><a href="https://jp.c.misumi-ec.com/book/DPJ_P01/digitalcatalog.html?page_num=341" target="_blank"> <span class="m-linkWin">P.341</span></a></p><table class="m-table u-wauto" summary="刃合せ用ボルト一本締めタイプショルダー式リテーナー　（厚さ２５mm） 製品仕様"><colgroup><col width="16.7%" /><col width="16.7%" /><col width="16.7%" /><col width="16.7%" /><col width="16.7%" /><col width="16.7%" /></colgroup><tbody><tr><th colspan="2" style="text-align: center;border-Left: 0px solid;border-Right: 0px solid;">型式</th><th colspan="4" style="text-align: center;border-Right: 0px solid;">構成部品</th></tr><tr><th style="text-align: center;border-Left: 0px solid;">丸パンチ用</th><th style="text-align: center;">変形パンチ用</th><th style="text-align: center;">（1）</th><th style="text-align: center;">（2）</th><th style="text-align: center;">（3）</th><th style="text-align: center;border-Right: 0px solid;">（4）</th></tr><tr><td style="text-align: left;border-Left: 0px solid;"><span class="fontType">ORTM</span></td><td style="text-align: left;"><span class="fontType">ORTSM</span></td><td class="coloredCell" style="text-align: center;">○</td><td class="coloredCell" style="text-align: center;">○</td><td class="coloredCell" style="text-align: center;">&nbsp;</td><td class="coloredCell" style="text-align: center;border-Right: 0px solid;">&nbsp;</td></tr><tr><td style="text-align: left;border-Left: 0px solid;"><span class="fontType">ORTMK</span></td><td style="text-align: left;"><span class="fontType">ORTSMK</span></td><td class="coloredCell" style="text-align: center;">○</td><td class="coloredCell" style="text-align: center;">&nbsp;</td><td class="coloredCell" style="text-align: center;">○</td><td class="coloredCell" style="text-align: center;">○</td></tr><tr><td style="text-align: left;border-Left: 0px solid;"><span class="fontType">ORTMO</span></td><td style="text-align: left;"><span class="fontType">ORTSMO</span></td><td class="coloredCell" style="text-align: center;">○</td><td class="coloredCell" style="text-align: center;">&nbsp;</td><td class="coloredCell" style="text-align: center;">&nbsp;</td><td class="coloredCell" style="text-align: center;border-Right: 0px solid;">&nbsp;</td></tr></tbody></table><ul class="m-notesList"><li>（1）本体<br /><span class="m_sp1"></span>材質：S45C</li><li>（2）付属品<br />ネジ付ノックピン：&phi;6<sub>m5</sub>&times;20&nbsp;2本<br />セットスクリュー：M8&times;8&nbsp;2本<br />六角穴付ボルト（規格表参照）：1本</li><li>（3）バッキングプレート<br /><span class="m_sp1"></span>材質：SCM440相当<br /><span class="m_sp3"></span>硬度：56～60HRC</li><li>（4）付属品（バッキングプレート付の場合）<br />ネジ付ノックピン：&phi;6<sub>m5</sub>&times;25&nbsp;2本<br />セットスクリュー：M8&times;8&nbsp;2本<br />六角穴付ボルト（規格表参照）：1本</li></ul><h3 class="m-h3--wysiwyg">規格表</h3><table class="m-table u-wauto" summary="刃合せ用ボルト一本締めタイプショルダー式リテーナー　（厚さ２５mm） 規格表"><colgroup><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /><col width="6.7%" /></colgroup><tbody><tr><th colspan="2" style="text-align: center;border-Left: 0px solid;border-Right: 0px solid;">型式</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">A</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">B</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">C</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">F</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">K</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">R</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">U</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">X</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">D<sub>1</sub></th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">d</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">t</th><th colspan="2" style="text-align: center;border-Right: 0px solid;"><span class="m_sp4"></span>付属ボルト</th></tr><tr><th style="text-align: center;border-Left: 0px solid;">Type</th><th style="text-align: center;">D</th><th style="text-align: center;">（2）</th><th style="text-align: center;border-Right: 0px solid;">（4）</th></tr><tr><td rowspan="6" style="text-align: left;border-Left: 0px solid;border-Bottom: 0px solid;"><span class="fontType">ORTM</span><br />（丸パンチ用）<br /><span class="fontType">ORTSM</span><br />（変形パンチ用廻り止め位置センター）</td><td style="text-align: center;"><span class="fontType">10</span></td><td class="coloredCell" style="text-align: center;">47</td><td class="coloredCell" style="text-align: center;">28</td><td class="coloredCell" style="text-align: center;">37.5</td><td class="coloredCell" style="text-align: center;">15.5</td><td class="coloredCell" style="text-align: center;">25.0</td><td class="coloredCell" style="text-align: right;">9.5</td><td class="coloredCell" style="text-align: center;">13.0</td><td class="coloredCell" style="text-align: right;">8.0</td><td class="coloredCell" style="text-align: center;">19.0</td><td class="coloredCell" style="text-align: center;">13.0</td><td class="coloredCell" style="text-align: center;">13.0</td><td class="coloredCell" rowspan="4" style="text-align: left;border-Bottom: 0px solid;">M12&times;40</td><td class="coloredCell" rowspan="4" style="text-align: left;border-Right: 0px solid;border-Bottom: 0px solid;">M12&times;45</td></tr><tr><td style="text-align: center;"><span class="fontType">13</span></td><td class="coloredCell" style="text-align: center;">50</td><td class="coloredCell" style="text-align: center;">28</td><td class="coloredCell" style="text-align: center;">37.5</td><td class="coloredCell" style="text-align: center;">12.5</td><td class="coloredCell" style="text-align: center;">25.0</td><td class="coloredCell" style="text-align: right;">12.5</td><td class="coloredCell" style="text-align: center;">13.0</td><td class="coloredCell" style="text-align: right;">8.0</td><td class="coloredCell" style="text-align: center;">19.0</td><td class="coloredCell" style="text-align: center;">13.0</td><td class="coloredCell" style="text-align: center;">13.0</td></tr><tr><td style="text-align: center;"><span class="fontType">16</span></td><td class="coloredCell" style="text-align: center;">52</td><td class="coloredCell" style="text-align: center;">32</td><td class="coloredCell" style="text-align: center;">38.0</td><td class="coloredCell" style="text-align: center;">14.0</td><td class="coloredCell" style="text-align: center;">25.0</td><td class="coloredCell" style="text-align: right;">14.0</td><td class="coloredCell" style="text-align: center;">13.0</td><td class="coloredCell" style="text-align: right;">8.0</td><td class="coloredCell" style="text-align: center;">19.0</td><td class="coloredCell" style="text-align: center;">13.0</td><td class="coloredCell" style="text-align: center;">13.0</td></tr><tr><td style="text-align: center;"><span class="fontType">20</span></td><td class="coloredCell" style="text-align: center;">55</td><td class="coloredCell" style="text-align: center;">35</td><td class="coloredCell" style="text-align: center;">37.5</td><td class="coloredCell" style="text-align: center;">-</td><td class="coloredCell" style="text-align: center;">25.0</td><td class="coloredCell" style="text-align: right;">17.5</td><td class="coloredCell" style="text-align: center;">14.0</td><td class="coloredCell" style="text-align: right;">11.0</td><td class="coloredCell" style="text-align: center;">19.0</td><td class="coloredCell" style="text-align: center;">13.0</td><td class="coloredCell" style="text-align: center;">13.0</td></tr><tr><td style="text-align: center;"><span class="fontType">25</span></td><td class="coloredCell" style="text-align: center;">73</td><td class="coloredCell" style="text-align: center;">44</td><td class="coloredCell" style="text-align: center;">51.0</td><td class="coloredCell" style="text-align: center;">-</td><td class="coloredCell" style="text-align: center;">35.0</td><td class="coloredCell" style="text-align: right;">22.0</td><td class="coloredCell" style="text-align: center;">20.0</td><td class="coloredCell" style="text-align: right;">15.0</td><td class="coloredCell" style="text-align: center;">25.0</td><td class="coloredCell" style="text-align: center;">17.0</td><td class="coloredCell" style="text-align: center;">10.0</td><td class="coloredCell" style="text-align: left;border-Bottom: 0px solid;">M16&times;45</td><td class="coloredCell" style="text-align: left;border-Right: 0px solid;border-Bottom: 0px solid;">M16&times;50</td></tr><tr><td style="text-align: center;"><span class="fontType">32</span></td><td class="coloredCell" style="text-align: center;">73</td><td class="coloredCell" style="text-align: center;">50</td><td class="coloredCell" style="text-align: center;">51.0</td><td class="coloredCell" style="text-align: center;">22.0</td><td class="coloredCell" style="text-align: center;">35.0</td><td class="coloredCell" style="text-align: right;">22.0</td><td class="coloredCell" style="text-align: center;">20.0</td><td class="coloredCell" style="text-align: right;">15.0</td><td class="coloredCell" style="text-align: center;">25.0</td><td class="coloredCell" style="text-align: center;">17.0</td><td class="coloredCell" style="text-align: center;">10.0</td><td class="coloredCell" colspan="2" style="text-align: center;border-Top: 0px solid;border-Right: 0px solid;">（低頭ボルト）</td></tr></tbody></table><p><span class="m_sp10"></span>バッキングプレート付はボルト及びノックピンの長さが変わります。</p><h3 class="m-h3--wysiwyg">注文例</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="刃合せ用ボルト一本締めタイプショルダー式リテーナー　（厚さ２５mm） 注文例" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/250000001211/250000001211_003_20230801115904.gif" /></div></div><h3 class="m-h3--wysiwyg">出荷日</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="刃合せ用ボルト一本締めタイプショルダー式リテーナー　（厚さ２５mm） 出荷日" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/250000001211/250000001211_001_20230801115904.gif" /></div></div>
