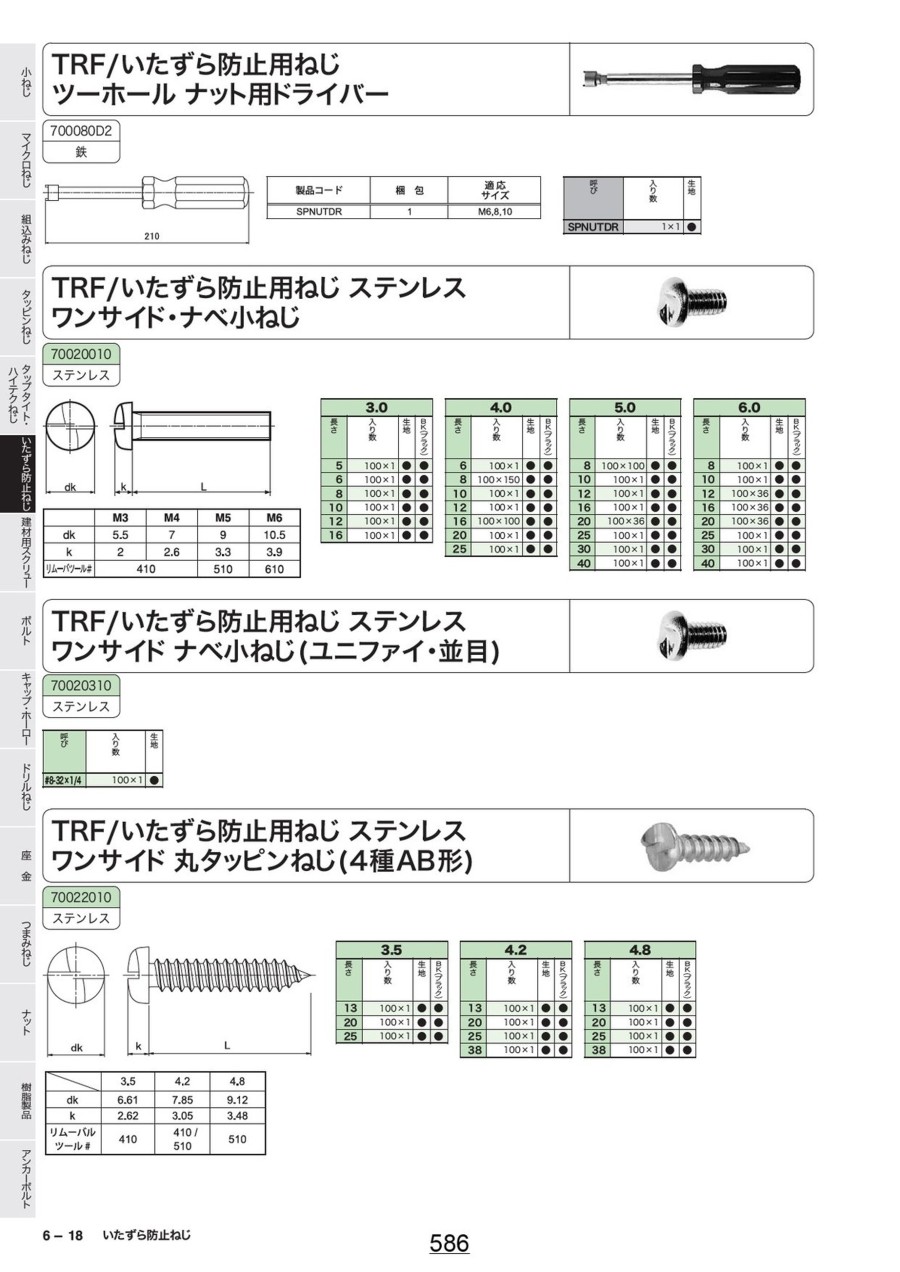

<h3 class="m-h3--wysiwyg">いたずら防止ネジ 丸タッピン（4種AB形）の仕様</h3><div class="m-cols" data-autoheight="group"><div class="m-cols__wrap"><div class="m-cols__1of2"><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/221005674186/221005674186_001_20230801115855.jpg" alt="丸タッピン（4種AB形）の寸法図1"></div><p>丸タッピン（4種AB形）の寸法図1</p></div></div><div class="m-cols__1of2"><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/221005674186/221005674186_002_20230801115855.jpg" alt="丸タッピン（4種AB形）の寸法図2"></div><p>丸タッピン（4種AB形）の寸法図2</p></div></div></div></div><table class="m-table"><colgroup><col style="width:30%;"><col style="width:23.333333333333%;"><col style="width:23.333333333333%;"><col style="width:23.333333333333%;"></colgroup><thead><tr><th style="text-align: center;">-</th><th style="text-align: center;">3.5</th><th style="text-align: center;">4.2</th><th style="text-align: center;">4.8</th></tr></thead><tbody><tr><th style="text-align: center;">dk</th><td style="text-align: center;">6.61</td><td style="text-align: center;">7.85</td><td style="text-align: center;">9.12</td></tr><tr><th style="text-align: center;">k</th><td style="text-align: center;">2.62</td><td style="text-align: center;">3.05</td><td style="text-align: center;">3.48</td></tr><tr><th style="text-align: center;">リムーバルツール#</th><td style="text-align: center;">410</td><td style="text-align: center;">410／510</td><td style="text-align: center;">510</td></tr></tbody></table><ul class="m-list"><li>材質：ステンレス</li><li>表面処理：生地・黒色塗装</li></ul><ul class="m-notesList"><li>※ 上記以外の情報につきましてはカタログをご覧ください。</li></ul><h4 class="m-h4--wysiwyg">採用事例</h4><div class="m-cols" data-autoheight="group"><div class="m-cols__wrap"><div class="m-cols__1of4"><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/221005674186/221005674186_003_20230801115855.jpg" alt="採用事例1"></div><p>採用事例1</p></div></div><div class="m-cols__1of4"><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/221005674186/221005674186_004_20230801115855.jpg" alt="採用事例2"></div><p>採用事例2</p></div></div><div class="m-cols__1of4"><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/221005674186/221005674186_005_20230801115855.jpg" alt="採用事例3"></div><p>採用事例3</p></div></div><div class="m-cols__1of4"><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/221005674186/221005674186_006_20230801115855.jpg" alt="採用事例4"></div><p>採用事例4</p></div></div></div></div>
