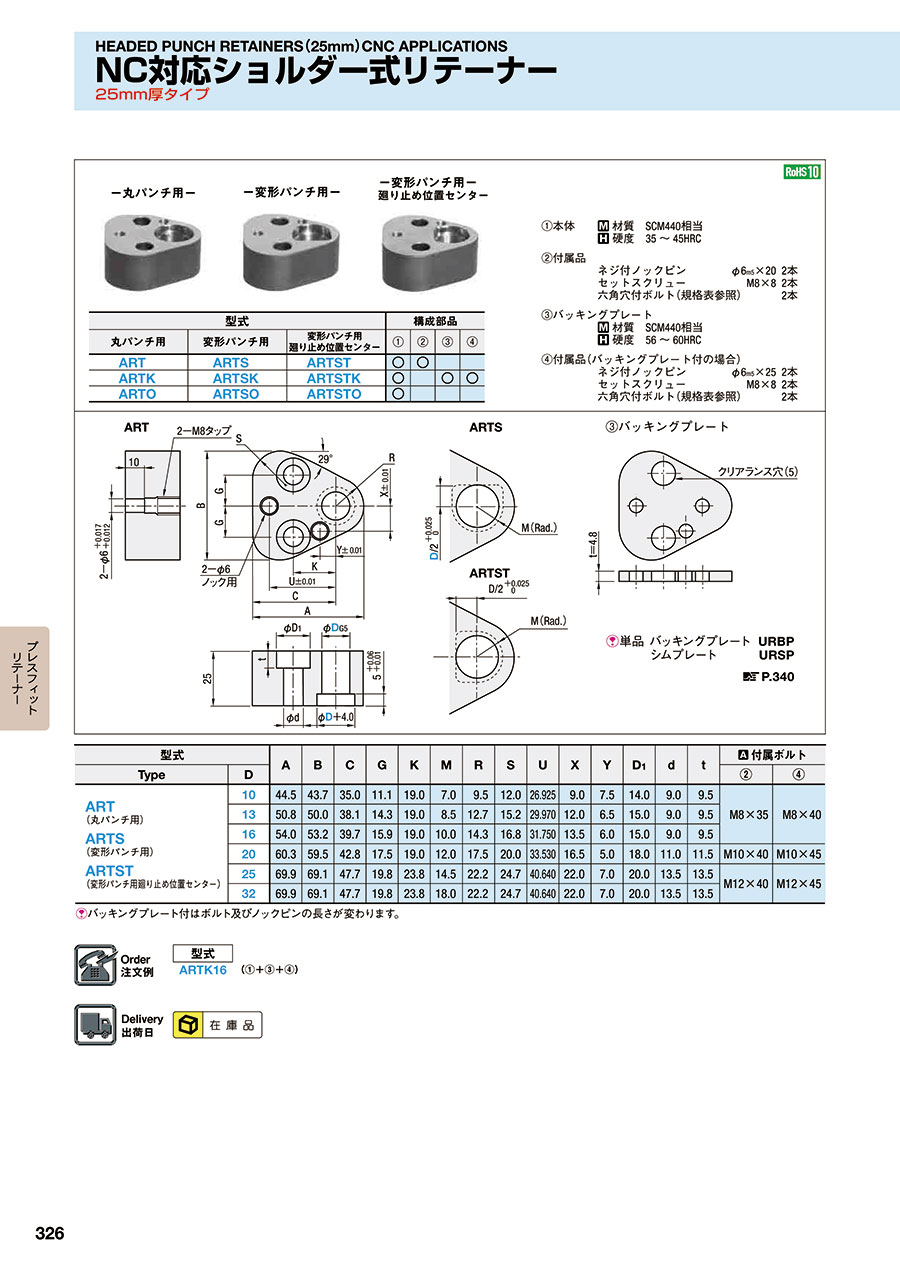

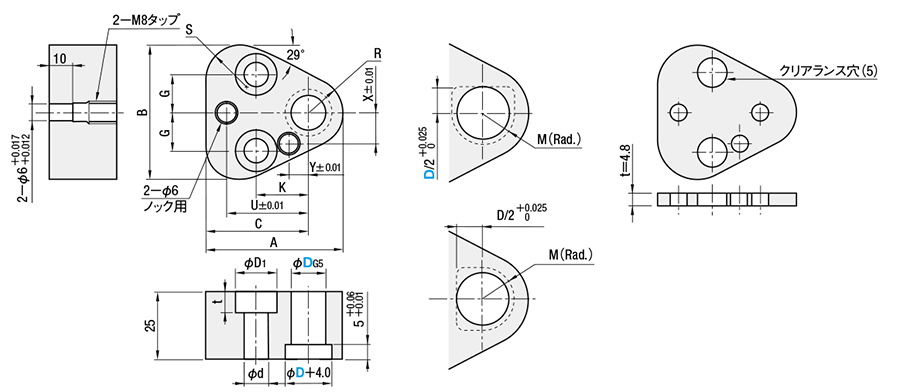

<h3 class="m-h3--wysiwyg">外形図・製品仕様</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="NC対応ショルダー式リテーナー　（厚さ２５mm） 外形図" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/250000001154/250000001154_002_20230801115904.gif" /></div></div><p><span class="m_sp10"></span>単品&nbsp;バッキングプレート：URBP／シムプレート：URSP<br /><span class="m_sp8"></span><a href="https://jp.c.misumi-ec.com/book/DPJ_P01/digitalcatalog.html?page_num=340" target="_blank"> <span class="m-linkWin">P.340</span></a></p><table class="m-table u-wauto" summary="NC対応ショルダー式リテーナー　（厚さ２５mm） 製品仕様"><colgroup><col width="13.5%" /><col width="13.5%" /><col width="19.2%" /><col width="13.5%" /><col width="13.5%" /><col width="13.5%" /><col width="13.5%" /></colgroup><tbody><tr><th colspan="3" style="text-align: center;border-Left: 0px solid;border-Right: 0px solid;">型式</th><th colspan="4" style="text-align: center;border-Right: 0px solid;">構成部品</th></tr><tr><th style="text-align: center;border-Left: 0px solid;">丸パンチ用</th><th style="text-align: center;">変形パンチ用</th><th style="text-align: center;">変形パンチ用<br />廻り止め位置センター</th><th style="text-align: center;">（1）</th><th style="text-align: center;">（2）</th><th style="text-align: center;">（3）</th><th style="text-align: center;border-Right: 0px solid;">（4）</th></tr><tr><td style="text-align: left;border-Left: 0px solid;"><span class="fontType">ART</span></td><td style="text-align: left;"><span class="fontType">ARTS</span></td><td style="text-align: left;"><span class="fontType">ARTST</span></td><td class="coloredCell" style="text-align: center;">○</td><td class="coloredCell" style="text-align: center;">○</td><td class="coloredCell" style="text-align: center;">&nbsp;</td><td class="coloredCell" style="text-align: center;border-Right: 0px solid;">&nbsp;</td></tr><tr><td style="text-align: left;border-Left: 0px solid;"><span class="fontType">ARTK</span></td><td style="text-align: left;"><span class="fontType">ARTSK</span></td><td style="text-align: left;"><span class="fontType">ARTSTK</span></td><td class="coloredCell" style="text-align: center;">○</td><td class="coloredCell" style="text-align: center;">&nbsp;</td><td class="coloredCell" style="text-align: center;">○</td><td class="coloredCell" style="text-align: center;">○</td></tr><tr><td style="text-align: left;border-Left: 0px solid;"><span class="fontType">ARTO</span></td><td style="text-align: left;"><span class="fontType">ARTSO</span></td><td style="text-align: left;"><span class="fontType">ARTSTO</span></td><td class="coloredCell" style="text-align: center;">○</td><td class="coloredCell" style="text-align: center;">&nbsp;</td><td class="coloredCell" style="text-align: center;">&nbsp;</td><td class="coloredCell" style="text-align: center;border-Right: 0px solid;">&nbsp;</td></tr></tbody></table><ul class="m-notesList"><li>（1）本体<br /><span class="m_sp1"></span>材質：SCM440相当<br /><span class="m_sp3"></span>硬度：35～45HRC</li><li>（2）付属品<br />ネジ付ノックピン：&phi;6<sub>m5</sub>&times;20&nbsp;2本<br />セットスクリュー：M8&times;8&nbsp;2本<br />六角穴付ボルト（規格表参照）：2本</li><li>（3）バッキングプレート<br /><span class="m_sp1"></span>材質：SCM440相当<br /><span class="m_sp3"></span>硬度：56～60HRC</li><li>（4）付属品（バッキングプレート付の場合）<br />ネジ付ノックピン：&phi;6<sub>m5</sub>&times;25&nbsp;2本<br />セットスクリュー：M8&times;8&nbsp;2本<br />六角穴付ボルト（規格表参照）：2本</li></ul><h3 class="m-h3--wysiwyg">規格表</h3><table class="m-table u-wauto" summary="NC対応ショルダー式リテーナー　（厚さ２５mm） 規格表"><colgroup><col width="7.7%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /><col width="5.4%" /></colgroup><tbody><tr><th colspan="2" style="text-align: center;border-Left: 0px solid;border-Right: 0px solid;">型式</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">A</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">B</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">C</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">G</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">K</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">M</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">R</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">S</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">U</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">X</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">Y</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">D<sub>1</sub></th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">d</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">t</th><th colspan="2" style="text-align: center;border-Right: 0px solid;"><span class="m_sp4"></span>付属ボルト</th></tr><tr><th style="text-align: center;border-Left: 0px solid;">Type</th><th style="text-align: center;">D</th><th style="text-align: center;">（2）</th><th style="text-align: center;border-Right: 0px solid;">（4）</th></tr><tr><td rowspan="6" style="text-align: left;border-Left: 0px solid;border-Bottom: 0px solid;"><span class="fontType">ART</span><br />（丸パンチ用）<br /><span class="fontType">ARTS</span><br />（変形パンチ用）<br /><span class="fontType">ARTST</span><br />（変形パンチ用廻り止め位置センター）</td><td style="text-align: center;"><span class="fontType">10</span></td><td class="coloredCell" style="text-align: center;">44.5</td><td class="coloredCell" style="text-align: center;">43.7</td><td class="coloredCell" style="text-align: center;">35.0</td><td class="coloredCell" style="text-align: center;">11.1</td><td class="coloredCell" style="text-align: center;">19.0</td><td class="coloredCell" style="text-align: right;">7.0</td><td class="coloredCell" style="text-align: right;">9.5</td><td class="coloredCell" style="text-align: center;">12.0</td><td class="coloredCell" style="text-align: center;">26.925</td><td class="coloredCell" style="text-align: right;">9.0</td><td class="coloredCell" style="text-align: center;">7.5</td><td class="coloredCell" style="text-align: center;">14.0</td><td class="coloredCell" style="text-align: right;">9.0</td><td class="coloredCell" style="text-align: right;">9.5</td><td class="coloredCell" rowspan="3" style="text-align: left;border-Bottom: 0px solid;">M8&times;35</td><td class="coloredCell" rowspan="3" style="text-align: left;border-Right: 0px solid;border-Bottom: 0px solid;">M8&times;40</td></tr><tr><td style="text-align: center;"><span class="fontType">13</span></td><td class="coloredCell" style="text-align: center;">50.8</td><td class="coloredCell" style="text-align: center;">50.0</td><td class="coloredCell" style="text-align: center;">38.1</td><td class="coloredCell" style="text-align: center;">14.3</td><td class="coloredCell" style="text-align: center;">19.0</td><td class="coloredCell" style="text-align: right;">8.5</td><td class="coloredCell" style="text-align: right;">12.7</td><td class="coloredCell" style="text-align: center;">15.2</td><td class="coloredCell" style="text-align: center;">29.970</td><td class="coloredCell" style="text-align: right;">12.0</td><td class="coloredCell" style="text-align: center;">6.5</td><td class="coloredCell" style="text-align: center;">15.0</td><td class="coloredCell" style="text-align: right;">9.0</td><td class="coloredCell" style="text-align: right;">9.5</td></tr><tr><td style="text-align: center;"><span class="fontType">16</span></td><td class="coloredCell" style="text-align: center;">54.0</td><td class="coloredCell" style="text-align: center;">53.2</td><td class="coloredCell" style="text-align: center;">39.7</td><td class="coloredCell" style="text-align: center;">15.9</td><td class="coloredCell" style="text-align: center;">19.0</td><td class="coloredCell" style="text-align: right;">10.0</td><td class="coloredCell" style="text-align: right;">14.3</td><td class="coloredCell" style="text-align: center;">16.8</td><td class="coloredCell" style="text-align: center;">31.750</td><td class="coloredCell" style="text-align: right;">13.5</td><td class="coloredCell" style="text-align: center;">6.0</td><td class="coloredCell" style="text-align: center;">15.0</td><td class="coloredCell" style="text-align: right;">9.0</td><td class="coloredCell" style="text-align: right;">9.5</td></tr><tr><td style="text-align: center;"><span class="fontType">20</span></td><td class="coloredCell" style="text-align: center;">60.3</td><td class="coloredCell" style="text-align: center;">59.5</td><td class="coloredCell" style="text-align: center;">42.8</td><td class="coloredCell" style="text-align: center;">17.5</td><td class="coloredCell" style="text-align: center;">19.0</td><td class="coloredCell" style="text-align: right;">12.0</td><td class="coloredCell" style="text-align: right;">17.5</td><td class="coloredCell" style="text-align: center;">20.0</td><td class="coloredCell" style="text-align: center;">33.530</td><td class="coloredCell" style="text-align: right;">16.5</td><td class="coloredCell" style="text-align: center;">5.0</td><td class="coloredCell" style="text-align: center;">18.0</td><td class="coloredCell" style="text-align: right;">11.0</td><td class="coloredCell" style="text-align: right;">11.5</td><td class="coloredCell" style="text-align: left;">M10&times;40</td><td class="coloredCell" style="text-align: left;border-Right: 0px solid;">M10&times;45</td></tr><tr><td style="text-align: center;"><span class="fontType">25</span></td><td class="coloredCell" style="text-align: center;">69.9</td><td class="coloredCell" style="text-align: center;">69.1</td><td class="coloredCell" style="text-align: center;">47.7</td><td class="coloredCell" style="text-align: center;">19.8</td><td class="coloredCell" style="text-align: center;">23.8</td><td class="coloredCell" style="text-align: right;">14.5</td><td class="coloredCell" style="text-align: right;">22.2</td><td class="coloredCell" style="text-align: center;">24.7</td><td class="coloredCell" style="text-align: center;">40.640</td><td class="coloredCell" style="text-align: right;">22.0</td><td class="coloredCell" style="text-align: center;">7.0</td><td class="coloredCell" style="text-align: center;">20.0</td><td class="coloredCell" style="text-align: right;">13.5</td><td class="coloredCell" style="text-align: right;">13.5</td><td class="coloredCell" rowspan="2" style="text-align: left;border-Bottom: 0px solid;">M12&times;40</td><td class="coloredCell" rowspan="2" style="text-align: left;border-Right: 0px solid;border-Bottom: 0px solid;">M12&times;45</td></tr><tr><td style="text-align: center;"><span class="fontType">32</span></td><td class="coloredCell" style="text-align: center;">69.9</td><td class="coloredCell" style="text-align: center;">69.1</td><td class="coloredCell" style="text-align: center;">47.7</td><td class="coloredCell" style="text-align: center;">19.8</td><td class="coloredCell" style="text-align: center;">23.8</td><td class="coloredCell" style="text-align: right;">18.0</td><td class="coloredCell" style="text-align: right;">22.2</td><td class="coloredCell" style="text-align: center;">24.7</td><td class="coloredCell" style="text-align: center;">40.640</td><td class="coloredCell" style="text-align: right;">22.0</td><td class="coloredCell" style="text-align: center;">7.0</td><td class="coloredCell" style="text-align: center;">20.0</td><td class="coloredCell" style="text-align: right;">13.5</td><td class="coloredCell" style="text-align: right;">13.5</td></tr></tbody></table><p><span class="m_sp10"></span>バッキングプレート付はボルト及びノックピンの長さが変わります。</p><h3 class="m-h3--wysiwyg">注文例</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="NC対応ショルダー式リテーナー　（厚さ２５mm） 注文例" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/250000001154/250000001154_003_20230801115904.gif" /></div></div><h3 class="m-h3--wysiwyg">出荷日</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="NC対応ショルダー式リテーナー　（厚さ２５mm） 出荷日" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/250000001154/250000001154_001_20230801115904.gif" /></div></div>
