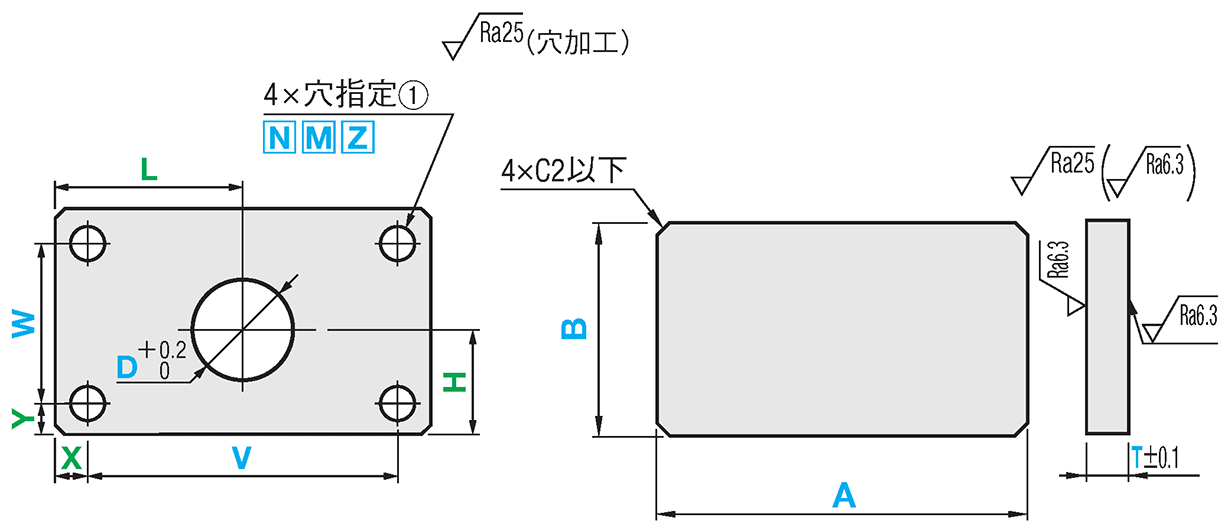

<h3 class="m-h3--wysiwyg">外形図</h3><div class="pad_b15" style="position: relative"><span style="position: absolute; left: 0px; top: 0px"><font class="fontType">HFMCB</font></span> <span style="position: absolute; left: 381px; top: 59px; width: 83px; height: 19px;">（共通寸法）</span><p style="width: 30px; position: absolute; top: 217px; left: 594px;"><span class="fontNote">[ ! ]</span></p><img alt="６面フライス　取付板・ブラケット-外径寸法フリー指定-:関連画像" src="//jp.misumi-ec.com/linked/item/10302704920/img/drw_20.gif" style="width: 616px; height: 266px;" /><br /><span class="fontNote">[ ! ]</span>穴ピッチ寸法公差はJISB0405m級に準じる。</div>&nbsp;<div class="pad_b15"><span class="fontNote">[ ! ]</span>板厚（T）公差を変更可能（追加工参照）<br /><span class="fontNote">[ ! ]</span>板厚平行度は100mmに対して0.05<br /><span class="fontNote">[ ! ]</span>指示なき面取りはC0.2～C0.5<br /><span class="fontNote">[ ! ]</span>その他精度基準は&gt;&gt;<a href="https://jp.c.misumi-ec.com/book/MSM1_12/digitalcatalog.html?page_num=2-1887" target="_blank">こちら</a>参照<br /><span class="fontNote">[ ! ]</span><span class="fontType">緑色のパラメータ</span><span class="fontNote">は省略可能です。省略した場合、センターに対して均等配置になります。</span><span class="fontNote">（</span>&gt;&gt;<span class="fontNote">&thinsp;</span><span class="fontNote"><a href="https://jp.c.misumi-ec.com/book/MSM1_12/digitalcatalog.html?page_num=2-1888" target="_blank">こちら</a></span><span class="fontNote">参照）</span></div>&nbsp;<div class="pad_b15">■穴種選択表<table border="0" cellspacing="0" style="border-width: 0px;"><tbody><tr><td align="center" class="headerCell">穴種</td><td align="center" class="headerCell">タップ穴</td><td align="center" class="headerCell">ボルト通し穴</td><td align="center" class="headerCell">ザグリ表</td><td align="center" class="headerCell">ザグリ裏</td><td align="center" class="headerCell">通し穴</td></tr><tr><td align="center" class="headerCell">Code</td><td align="center" class="bodyCell"><font class="fontType">M・MA</font></td><td align="center" class="bodyCell"><font class="fontType">N・NA</font></td><td align="center" class="bodyCell"><font class="fontType">Z・ZF</font></td><td align="center" class="bodyCell"><font class="fontType">ZB</font></td><td align="center" class="bodyCell"><font class="fontType">DA</font></td></tr><tr><td align="center" class="headerCell">形状図</td><td align="center" class="bodyCell"><img alt="" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110302704920/110302704920_002_20230801115852.gif" style="width: 110px; height: 150px;" /></td><td align="center" class="bodyCell"><img alt="" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110302704920/110302704920_003_20230801115852.gif" style="width: 76px; height: 150px;" /></td><td align="center" class="bodyCell"><img alt="" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110302704920/110302704920_004_20230801115852.gif" style="width: 84px; height: 150px;" /></td><td align="center" class="bodyCell"><img alt="" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110302704920/110302704920_005_20230801115852.gif" style="height: 150px; width: 92px;" /></td><td align="center" class="bodyCell"><img alt="" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110302704920/110302704920_006_20230801115852.gif" style="width: 82px; height: 150px;" /></td></tr><tr><td align="center" class="headerCell">加工<br />仕様</td><td align="center" class="coloredCell">タップ有効長<br />最大M・MA&times;2<br /><span class="fontNote">[ ! ]</span>T≧M・MA&times;3のとき、<br />&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;タップ下穴が貫通しない<br />場合があります。</td><td align="center" class="coloredCell" colspan="3"><table border="2" cellspacing="0" rules="all" width="100%"><tbody><tr><td align="center" class="bodyCell" rowspan="2">寸法</td><td align="center" class="bodyCell" colspan="9">ボルト呼び径</td></tr><tr><td align="center" class="bodyCell">3</td><td align="center" class="bodyCell">4</td><td align="center" class="bodyCell">5</td><td align="center" class="bodyCell">6</td><td align="center" class="bodyCell">8</td><td align="center" class="bodyCell">10</td><td align="center" class="bodyCell">12</td><td align="center" class="bodyCell">14</td><td align="center" class="bodyCell">16</td></tr><tr><td align="center" class="bodyCell">d・h</td><td align="center" class="bodyCell">3.5</td><td align="center" class="bodyCell">4.5</td><td align="center" class="bodyCell">5.5</td><td align="center" class="bodyCell">6.5</td><td align="center" class="bodyCell">9</td><td align="center" class="bodyCell">11</td><td align="center" class="bodyCell">14</td><td align="center" class="bodyCell">16</td><td align="center" class="bodyCell">18</td></tr><tr><td align="center" class="bodyCell">d<sub>1</sub></td><td align="center" class="bodyCell">6.5</td><td align="center" class="bodyCell">8</td><td align="center" class="bodyCell">9.5</td><td align="center" class="bodyCell">11</td><td align="center" class="bodyCell">14</td><td align="center" class="bodyCell">18</td><td align="center" class="bodyCell">20</td><td align="center" class="bodyCell">23</td><td align="center" class="bodyCell">26</td></tr></tbody></table></td><td align="center" class="coloredCell"><table border="2" cellspacing="0" rules="all" width="100%"><tbody><tr><td align="center" class="bodyCell">寸法</td><td align="center" class="bodyCell">公差</td></tr><tr><td align="center" class="bodyCell">3.0～6.0</td><td align="center" class="bodyCell">&plusmn;0.1</td></tr><tr><td align="center" class="bodyCell">6.5～30.0</td><td align="center" class="bodyCell">&plusmn;0.2</td></tr></tbody></table></td></tr></tbody></table><br />■加工限界<br />　穴と穴、穴と端面の肉厚に加工限界があります。<br />　（例：下図b部）<br />　<span class="fontNote">限界値は<a href="https://jp.c.misumi-ec.com/book/MSM1_12/digitalcatalog.html?page_num=2-1888" target="_blank">こちら</a>を参照</span><br /><img alt="" src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110302704920/110302704920_007_20230801115852.gif" style="width: 138px; height: 120px;" /></div>&nbsp;<div class="pad_b15"><table border="0" cellspacing="0"><tbody><tr><td align="center" class="headerCell" colspan="2">型式</td><td align="center" class="headerCell" rowspan="2">[ M ]材質</td><td align="center" class="headerCell" rowspan="2">[ S ]表面処理</td></tr><tr><td align="center" class="headerCell">Type</td><td align="center" class="headerCell">材質記号</td></tr><tr><td align="center" class="bodyCell" rowspan="7"><span class="fontType">HFＭＣＢ</span></td><td align="center" class="bodyCell"><span class="fontType">Ｓ</span><span class="fontType">Ｃ</span></td><td align="center" class="bodyCell" rowspan="3">S50C</td><td align="center" class="bodyCell">－</td></tr><tr><td align="center" class="bodyCell"><span class="fontType">Ｓ</span><span class="fontType">Ｃ</span><span class="fontType">Ｂ</span></td><td align="center" class="bodyCell">四三酸化鉄皮膜</td></tr><tr><td align="center" class="bodyCell"><span class="fontType">Ｓ</span><span class="fontType">Ｃ</span><span class="fontType">Ｍ</span></td><td align="center" class="bodyCell">無電解ニッケルメッキ</td></tr><tr><td align="center" class="bodyCell"><span class="fontType">Ａ</span><span class="fontType">Ｍ</span></td><td align="center" class="bodyCell" rowspan="3">A5052</td><td align="center" class="bodyCell">－</td></tr><tr><td align="center" class="bodyCell"><span class="fontType">Ａ</span><span class="fontType">Ｍ</span><span class="fontType">Ｗ</span></td><td align="center" class="bodyCell">アルマイト処理(白)</td></tr><tr><td align="center" class="bodyCell"><span class="fontType">Ａ</span><span class="fontType">Ｍ</span><span class="fontType">Ｂ</span></td><td align="center" class="bodyCell">アルマイト処理(黒)</td></tr><tr><td align="center" class="bodyCell"><span class="fontType">Ｓ</span><span class="fontType">Ｕ</span></td><td align="center" class="bodyCell">SUS304</td><td align="center" class="bodyCell">－</td></tr></tbody></table></div>
