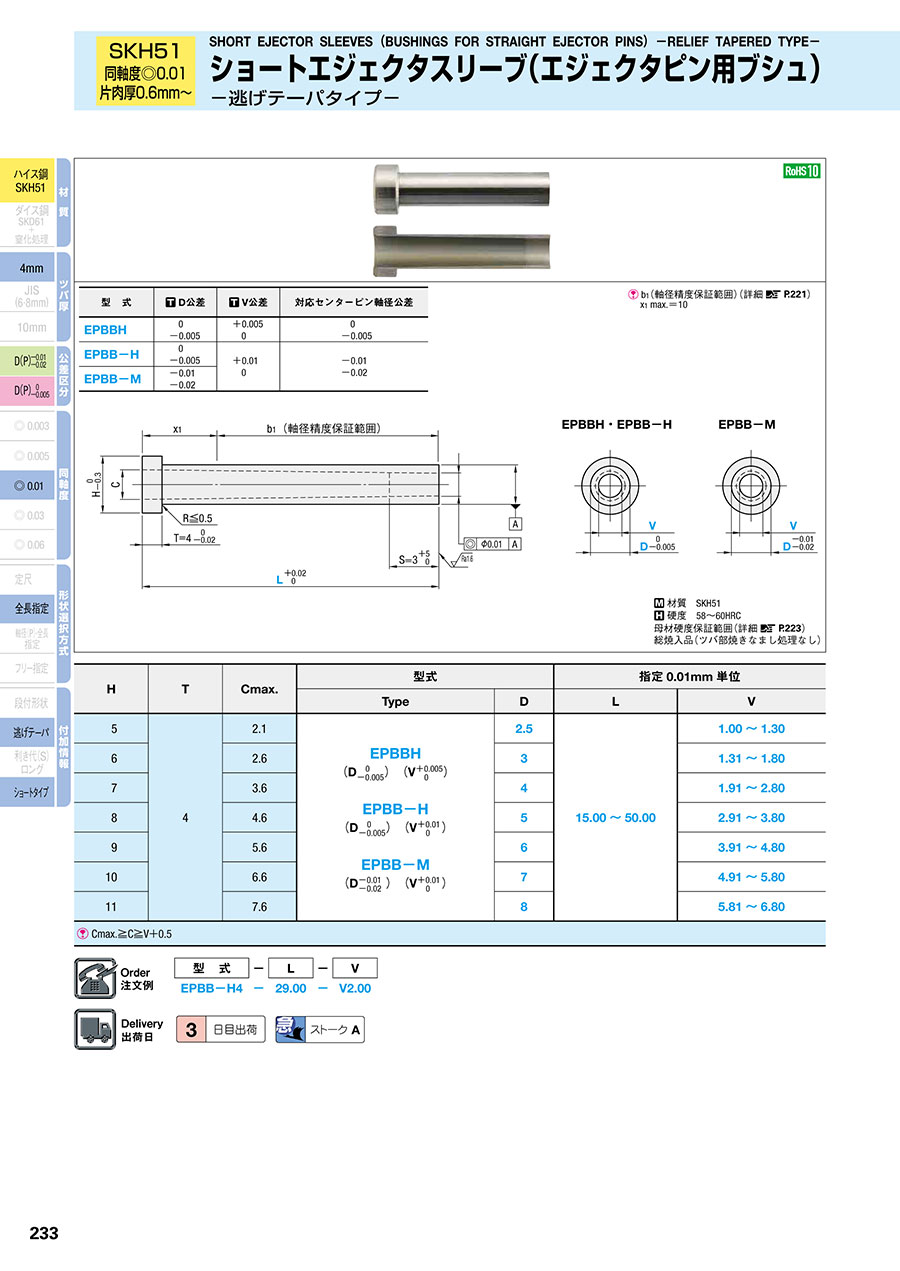

<h3 class="m-h3--wysiwyg">外形図・製品仕様</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="ショートエジェクタスリーブ(エジェクタピン用ブッシュ) -SKH51/同軸度◎0.01/片肉厚0.6mm～/逃げテーパタイプ- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200182970/110200182970_001_20230801115852.gif" style="width: 850px; height: 209px;" /></div></div><p><br /><span class="m_sp10"></span>&nbsp;b1（軸径精度保証範囲）（詳細&nbsp;<span class="m_sp8"></span>&nbsp;<a href="https://jp.c.misumi-ec.com/book/MSM1_K06/digitalcatalog.html?page_num=221" target="_blank">P.221</a>）<br />&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;x1&nbsp;max.＝10</p><table class="m-table u-wauto" summary="ショートエジェクタスリーブ(エジェクタピン用ブッシュ) -SKH51/同軸度◎0.01/片肉厚0.6mm～/逃げテーパタイプ- Table2"><tbody><tr><th style="text-align: center;border-Left: 0px solid;">型式</th><th style="text-align: center;"><span class="m_sp5"></span>D公差</th><th style="text-align: center;"><span class="m_sp5"></span>V公差</th><th style="text-align: center;border-Right: 0px solid;">対応センターピン軸径公差</th></tr><tr><td style="text-align: center;border-Left: 0px solid;"><span class="fontType">EPBBH</span></td><td style="text-align: center;">0<br />-0.005</td><td style="text-align: center;">+0.005<br />0</td><td style="text-align: center;border-Right: 0px solid;">0<br />-0.005</td></tr><tr><td style="text-align: center;border-Left: 0px solid;"><span class="fontType">EPBB-H</span></td><td style="text-align: center;">0<br />-0.005</td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;">+0.01<br />0</td><td rowspan="2" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;">-0.01<br />-0.02</td></tr><tr><td style="text-align: center;border-Left: 0px solid;"><span class="fontType">EPBB-M</span></td><td style="text-align: center;">-0.01<br />-0.02</td></tr></tbody></table><p><span class="m_sp1"></span>材質&nbsp;SKH51<br /><span class="m_sp3"></span>硬度&nbsp;58～60HRC<br />母材硬度保証範囲（詳細&nbsp;<span class="m_sp8"></span>&nbsp;<a href="https://jp.c.misumi-ec.com/book/MSM1_K06/digitalcatalog.html?page_num=223" target="_blank">P.223</a>）<br />総焼入品（ツバ部焼きなまし処理なし）</p><h3 class="m-h3--wysiwyg">規格表</h3><table class="m-table" summary="ショートエジェクタスリーブ(エジェクタピン用ブッシュ) -SKH51/同軸度◎0.01/片肉厚0.6mm～/逃げテーパタイプ- Table5"><colgroup><col width="7.3%" /><col width="8.2%" /><col width="8.2%" /><col width="31.8%" /><col width="8.3%" /><col width="15.6%" /><col width="20.7%" /></colgroup><tbody><tr><th rowspan="2" style="text-align: center;border-Left: 0px solid;border-Bottom: 0px solid;">H</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">T</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">Cmax.</th><th colspan="2" style="text-align: center;border-Right: 0px solid;">型式</th><th colspan="2" style="text-align: center;border-Right: 0px solid;">指定0.01mm単位</th></tr><tr><th style="text-align: center;">Type</th><th style="text-align: center;">D</th><th style="text-align: center;">L</th><th style="text-align: center;border-Right: 0px solid;">V</th></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">5</td><td class="coloredCell" rowspan="7" style="text-align: center;border-Bottom: 0px solid;">4</td><td class="coloredCell" style="text-align: center;">2.1</td><td rowspan="7" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">EPBBH</span><br />（<span class="u-bold">D</span>&nbsp;0/-0.005）&nbsp;（<span class="u-bold">V</span>&nbsp;+0.005/0）<span class="fontType"></span><br /><span class="fontType"></span><br /><span class="fontType">EPBB-H</span><br />（<span class="u-bold">D</span>&nbsp;0/-0.005）&nbsp;（<span class="u-bold">V</span>&nbsp;+0.01/0）<span class="fontType"></span><br /><span class="fontType"></span><br /><span class="fontType">EPBB-M</span><br />（<span class="u-bold">D</span>&nbsp;-0.01/-0.02&nbsp;）&nbsp;（<span class="u-bold">V</span>&nbsp;+0.01/0）</td><td style="text-align: center;"><span class="fontType">2.5</span></td><td rowspan="7" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">15.00～50.00</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">1.00～1.30</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">6</td><td class="coloredCell" style="text-align: center;">2.6</td><td style="text-align: center;"><span class="fontType">3</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">1.31～1.80</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">7</td><td class="coloredCell" style="text-align: center;">3.6</td><td style="text-align: center;"><span class="fontType">4</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">1.91～2.80</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">8</td><td class="coloredCell" style="text-align: center;">4.6</td><td style="text-align: center;"><span class="fontType">5</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">2.91～3.80</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">9</td><td class="coloredCell" style="text-align: center;">5.6</td><td style="text-align: center;"><span class="fontType">6</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">3.91～4.80</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">10</td><td class="coloredCell" style="text-align: center;">6.6</td><td style="text-align: center;"><span class="fontType">7</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">4.91～5.80</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">11</td><td class="coloredCell" style="text-align: center;">7.6</td><td style="text-align: center;"><span class="fontType">8</span></td><td style="text-align: center;border-Right: 0px solid;"><span class="fontType">5.81～6.80</span></td></tr><tr><td class="coloredCell" colspan="7" style="text-align: left;border-Left: 0px solid;border-Right: 0px solid;"><span class="fontNote"><span class="m_sp10"></span>&nbsp;</span>Cmax.≧C≧V+0.5</td></tr></tbody></table><h3 class="m-h3--wysiwyg">注文例</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="ショートエジェクタスリーブ(エジェクタピン用ブッシュ) -SKH51/同軸度◎0.01/片肉厚0.6mm～/逃げテーパタイプ- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200182970/110200182970_002_20230801115852.gif" /></div></div><h3 class="m-h3--wysiwyg">出荷日</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="ショートエジェクタスリーブ(エジェクタピン用ブッシュ) -SKH51/同軸度◎0.01/片肉厚0.6mm～/逃げテーパタイプ- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200182970/110200182970_003_20230801115852.gif" /></div></div><h3 class="m-h3--wysiwyg">追加工</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="ショートエジェクタスリーブ(エジェクタピン用ブッシュ) -SKH51/同軸度◎0.01/片肉厚0.6mm～/逃げテーパタイプ- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200182970/110200182970_004_20230801115852.gif" /></div></div><p><span class="m_sp8"></span>&nbsp;<a href="https://jp.c.misumi-ec.com/book/MSM1_K06/digitalcatalog.html?page_num=225" target="_blank">P.225</a></p>
