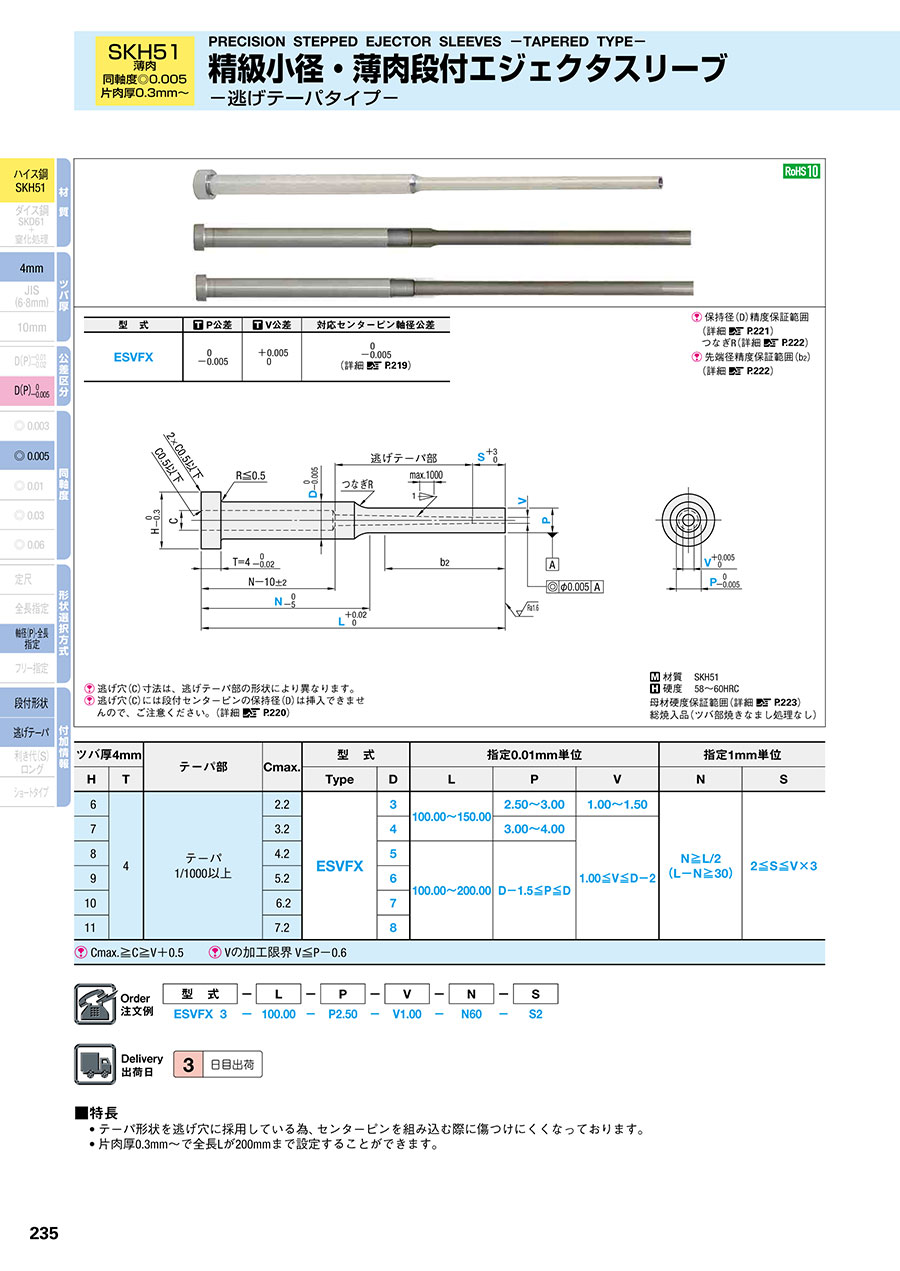

<h3 class="m-h3--wysiwyg">外形図・製品仕様</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="精級小径･薄肉段付エジェクタスリーブ -SKH51/同軸度◎0.005/片肉厚0.3mm～/逃げテーパタイプ- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200165920/110200165920_001_20230801115852.gif" style="width: 740px; height: 274px;" /></div></div><p><br /><span class="m_sp10"></span>&nbsp;逃げ穴（C）寸法は、逃げテーパ部の形状により異なります。<br /><span class="m_sp10"></span>&nbsp;逃げ穴（C）には段付センターピンの保持径（D）は挿入できませ &nbsp;んので、ご注意ください。（詳細&nbsp;<span class="m_sp8"></span>&nbsp;<a href="https://jp.c.misumi-ec.com/book/MSM1_K06/digitalcatalog.html?page_num=220" target="_blank">P.220</a>）<br /><br /><span class="m_sp10"></span>&nbsp;保持径（D）精度保証範囲（詳細&nbsp;<span class="m_sp8"></span>&nbsp;<a href="https://jp.c.misumi-ec.com/book/MSM1_K06/digitalcatalog.html?page_num=221" target="_blank">P.221</a>）<br />&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;つなぎR（詳細&nbsp;<span class="m_sp8"></span>&nbsp;<a href="https://jp.c.misumi-ec.com/book/MSM1_K06/digitalcatalog.html?page_num=222" target="_blank">P.222</a>）<br /><span class="m_sp10"></span>&nbsp;先端径精度保証範囲（b2）（詳細&nbsp;<span class="m_sp8"></span>&nbsp;<a href="https://jp.c.misumi-ec.com/book/MSM1_K06/digitalcatalog.html?page_num=222" target="_blank">P.222</a>）</p><table class="m-table u-wauto" summary="精級小径･薄肉段付エジェクタスリーブ -SKH51/同軸度◎0.005/片肉厚0.3mm～/逃げテーパタイプ- Table2"><tbody><tr><th style="text-align: center;border-Left: 0px solid;">型式&nbsp;</th><th style="text-align: center;"><span class="m_sp5"></span>P公差</th><th style="text-align: center;"><span class="m_sp5"></span>V公差</th><th style="border-Right: 0px solid;">対応センターピン軸径公差</th></tr><tr><td style="text-align: center;border-Left: 0px solid;"><span class="fontType">ESVFX</span></td><td style="text-align: center;">0<br />-0.005</td><td style="text-align: center;">+0.005<br />0</td><td style="text-align: center;">0<br />-0.005<br />（詳細&nbsp;<span class="m_sp8"></span>&nbsp;<a href="https://jp.c.misumi-ec.com/book/MSM1_K06/digitalcatalog.html?page_num=219" target="_blank">P.219</a>）</td></tr></tbody></table><p><span class="m_sp1"></span>材質&nbsp;SKH51<br /><span class="m_sp3"></span>硬度&nbsp;58～60HRC<br />母材硬度保証範囲（詳細&nbsp;<span class="m_sp8"></span>&nbsp;<a href="https://jp.c.misumi-ec.com/book/MSM1_K06/digitalcatalog.html?page_num=223" target="_blank">P.223</a>）<br />総焼入品（ツバ部焼きなまし処理なし）</p><h3 class="m-h3--wysiwyg">規格表</h3><table class="m-table" summary="精級小径･薄肉段付エジェクタスリーブ -SKH51/同軸度◎0.005/片肉厚0.3mm～/逃げテーパタイプ- Table5"><colgroup><col width="4.8%" /><col width="3.9%" /><col width="11.8%" /><col width="6.5%" /><col width="6.5%" /><col width="3.2%" /><col width="14.7%" /><col width="12.3%" /><col width="13.6%" /><col width="13.6%" /><col width="9.2%" /></colgroup><tbody><tr><th colspan="2" style="text-align: center;border-Left: 0px solid;border-Right: 0px solid;">ツバ厚4mm</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">テーパ部</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">Cmax.</th><th colspan="2" style="text-align: center;border-Right: 0px solid;">型&nbsp;&nbsp;&nbsp;&nbsp;式</th><th colspan="3" style="text-align: center;border-Right: 0px solid;">指定0.01mm単位</th><th colspan="2" style="text-align: center;border-Right: 0px solid;">指定1mm単位</th></tr><tr><th style="text-align: center;border-Left: 0px solid;">H</th><th style="text-align: center;">T</th><th style="text-align: center;">Type</th><th style="text-align: center;">D</th><th style="text-align: center;">L</th><th style="text-align: center;">P</th><th style="text-align: center;">V</th><th style="text-align: center;">N</th><th style="text-align: center;border-Right: 0px solid;">S</th></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">6</td><td class="coloredCell" rowspan="6" style="text-align: center;border-Bottom: 0px solid;">4</td><td class="coloredCell" rowspan="6" style="text-align: center;border-Bottom: 0px solid;">テーパ<br />1/1000以上</td><td class="coloredCell" style="text-align: center;">2.2&nbsp;</td><td rowspan="6" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">ESVFX</span></td><td style="text-align: center;"><span class="fontType">3</span></td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">100.00～150.00</span></td><td style="text-align: center;"><span class="fontType">2.50～3.00</span></td><td style="text-align: center;"><span class="fontType">1.00～1.50</span></td><td rowspan="6" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">N≧L/2</span><br /><span class="fontType">（L-N≧30）</span></td><td rowspan="6" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;"><span class="fontType">2≦S≦V&times;3</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">7</td><td class="coloredCell" style="text-align: center;">3.2</td><td style="text-align: center;"><span class="fontType">4</span></td><td style="text-align: center;"><span class="fontType">3.00～4.00</span></td><td rowspan="5" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">1.00≦V≦D-2&nbsp;</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">8</td><td class="coloredCell" style="text-align: center;">4.2</td><td style="text-align: center;"><span class="fontType">5</span></td><td rowspan="4" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">100.00～200.00</span></td><td rowspan="4" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">D-1.5≦P≦D</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">9</td><td class="coloredCell" style="text-align: center;">5.2</td><td style="text-align: center;"><span class="fontType">6</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">10</td><td class="coloredCell" style="text-align: center;">&nbsp;6.2</td><td style="text-align: center;"><span class="fontType">7</span></td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">11</td><td class="coloredCell" style="text-align: center;">7.2</td><td style="text-align: center;"><span class="fontType">8</span></td></tr><tr><td class="coloredCell" colspan="11" style="text-align: left;border-Left: 0px solid;border-Right: 0px solid;"><span class="fontNote"><span class="m_sp10"></span>&nbsp;</span>Cmax.≧C≧V+0.5<span class="fontNote">&nbsp; &nbsp;<span class="m_sp10"></span>&nbsp;</span>Vの加工限界&nbsp;V≦P-0.6</td></tr></tbody></table><h3 class="m-h3--wysiwyg">注文例</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="精級小径･薄肉段付エジェクタスリーブ -SKH51/同軸度◎0.005/片肉厚0.3mm～/逃げテーパタイプ- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200165920/110200165920_002_20230801115852.gif" /></div></div><h3 class="m-h3--wysiwyg">出荷日</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="精級小径･薄肉段付エジェクタスリーブ -SKH51/同軸度◎0.005/片肉厚0.3mm～/逃げテーパタイプ- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200165920/110200165920_003_20230801115852.gif" /></div></div><h3 class="m-h3--wysiwyg">追加工</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="精級小径･薄肉段付エジェクタスリーブ -SKH51/同軸度◎0.005/片肉厚0.3mm～/逃げテーパタイプ- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200165920/110200165920_004_20230801115852.gif" /></div></div><p><span class="m_sp8"></span>&nbsp;<a href="https://jp.c.misumi-ec.com/book/MSM1_K06/digitalcatalog.html?page_num=225" target="_blank">P.225</a></p><h3 class="m-h3--wysiwyg">関連情報</h3><p><span class="u-bold">■特長</span><br />&bull;&nbsp;テーパ形状を逃げ穴に採用している為、センターピンを組み込む際に傷つけにくくなっております。<br />&bull;&nbsp;片肉厚0.3mm～で全長Lが200mmまで設定することができます。</p>
