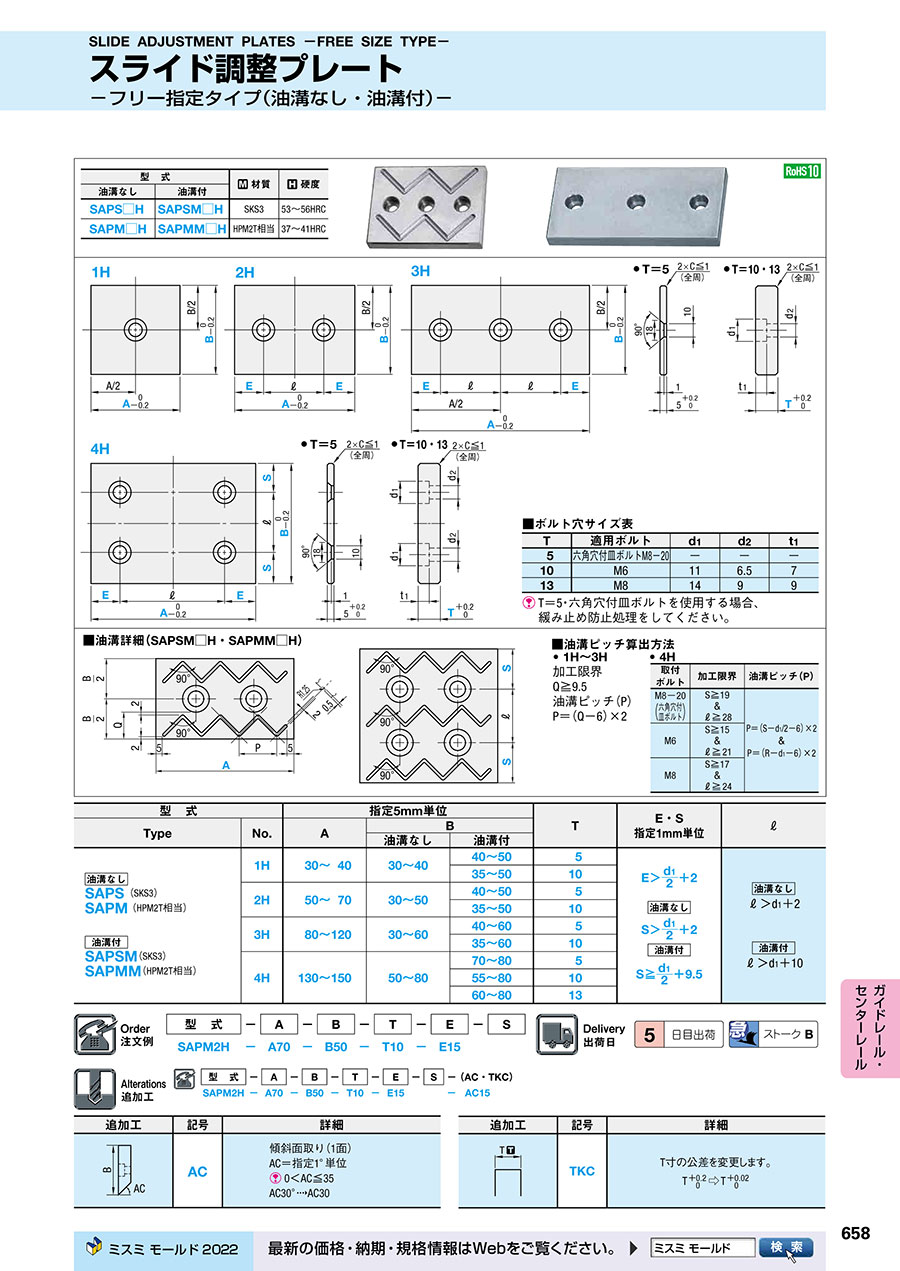

<h3 class="m-h3--wysiwyg">外形図・製品仕様</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="スライド調整プレート -フリー指定タイプ(油溝なし・油溝付)- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200067040/110200067040_002_20230801115852.gif" /></div></div><table class="m-table u-wauto" summary="スライド調整プレート -フリー指定タイプ(油溝なし・油溝付)- Spec 1"><tbody><tr><th colspan="2" style="text-align: center;border-Left: 0px solid;border-Right: 0px solid;">型&nbsp;&nbsp;&nbsp;&nbsp;式</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="m_sp1"></span>材質</th><th rowspan="2" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;"><span class="m_sp3"></span>硬度</th></tr><tr><th style="text-align: center;border-Left: 0px solid;">油溝なし</th><th style="text-align: center;">油溝付</th></tr><tr><td style="text-align: center;border-Left: 0px solid;"><span class="fontType">SAPS□H</span></td><td style="text-align: center;"><span class="fontType">SAPSM□H</span></td><td style="text-align: center;">SKS3</td><td style="text-align: center;border-Right: 0px solid;">53～56HRC</td></tr><tr><td style="text-align: center;border-Left: 0px solid;"><span class="fontType">SAPM□H</span></td><td style="text-align: center;"><span class="fontType">SAPMM□H</span></td><td style="text-align: center;">HPM2T相当</td><td style="text-align: center;border-Right: 0px solid;">37～41HRC</td></tr></tbody></table><p><br /><strong>■ボルト穴サイズ表</strong></p><table class="m-table u-wauto" summary="スライド調整プレート -フリー指定タイプ(油溝なし・油溝付)- Spec 3"><tbody><tr><th style="text-align: center;border-Left: 0px solid;">T</th><th style="text-align: center;">適用ボルト</th><th style="text-align: center;">d<sub>1</sub></th><th style="text-align: center;">d<sub>2</sub></th><th style="text-align: center;border-Right: 0px solid;">t<sub>1</sub></th></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">&nbsp;&nbsp;5</td><td class="coloredCell" style="text-align: center;">六角穴付皿ボルトM8-20</td><td class="coloredCell" style="text-align: center;">-</td><td class="coloredCell" style="text-align: center;">-</td><td class="coloredCell" style="text-align: center;border-Right: 0px solid;">-</td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">10</td><td class="coloredCell" style="text-align: center;">M6</td><td class="coloredCell" style="text-align: center;">11</td><td class="coloredCell" style="text-align: center;">6.5</td><td class="coloredCell" style="text-align: center;border-Right: 0px solid;">7</td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">13</td><td class="coloredCell" style="text-align: center;">M8</td><td class="coloredCell" style="text-align: center;">14</td><td class="coloredCell" style="text-align: center;">9</td><td class="coloredCell" style="text-align: center;border-Right: 0px solid;">9</td></tr></tbody></table><p><span class="m_sp10"></span>T＝5・六角穴付皿ボルトを使用する場合、緩み止め防止処理をしてください。</p><div class="m-unit">&nbsp;</div><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="スライド調整プレート -フリー指定タイプ(油溝なし・油溝付)- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200067040/110200067040_003_20230801115852.gif" style="width: 486px; height: 180px;" /></div></div><p><span class="u-bold"><br /><strong>■油溝ピッチ算出方法</strong></span></p><p><span class="u-bold">&bull;&nbsp;1H～3H</span><br />加工限界Q≧9.5<br />油溝ピッチ（P）P＝（Q-6）&times;2</p><p><span class="u-bold">&bull;&nbsp;4H</span></p><table class="m-table u-wauto" summary="スライド調整プレート -フリー指定タイプ(油溝なし・油溝付)- Spec 4"><tbody><tr><th style="text-align: center;border-Left: 0px solid;">取付ボルト</th><th style="text-align: center;">加工限界</th><th style="text-align: center;border-Right: 0px solid;">油溝ピッチ（P）</th></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">M8-20<br />（六角穴付皿ボルト）</td><td class="coloredCell" style="text-align: center;">S≧19<br />&amp;<br />ℓ≧28</td><td class="coloredCell" rowspan="3" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;">P＝（S-d<sub>1</sub>/2-6）&times;2<br />&amp;<br />P＝（R-d<sub>1</sub>-6）&times;2</td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">M6</td><td class="coloredCell" style="text-align: center;">S≧15<br />&amp;<br />ℓ≧21</td></tr><tr><td class="coloredCell" style="text-align: center;border-Left: 0px solid;">M8</td><td class="coloredCell" style="text-align: center;">S≧17<br />&amp;<br />ℓ≧24</td></tr></tbody></table><h3 class="m-h3--wysiwyg">規格表</h3><table class="m-table" summary="スライド調整プレート -フリー指定タイプ(油溝なし・油溝付)- Spec table"><colgroup><col width="4.8%" /><col width="23.2%" /><col width="4.1%" /><col width="12.6%" /><col width="9.0%" /><col width="12.5%" /><col width="3.1%" /><col width="15.8%" /><col width="14.9%" /></colgroup><tbody><tr><th colspan="3" style="text-align: center;border-Left: 0px solid;border-Top: 0px solid;border-Right: 0px solid;">型&nbsp;&nbsp;&nbsp;&nbsp;式</th><th colspan="3" style="text-align: center;border-Right: 0px solid;">指定5mm単位</th><th rowspan="3" style="text-align: center;border-Bottom: 0px solid;">T</th><th rowspan="3" style="text-align: center;border-Bottom: 0px solid;">E・S<br />指定1mm単位</th><th rowspan="3" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;">ℓ</th></tr><tr><th colspan="2" rowspan="2" style="text-align: center;">Type</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">No.</th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;">A</th><th colspan="2" style="text-align: center;border-Right: 0px solid;">B</th></tr><tr><th style="text-align: center;">油溝なし</th><th style="text-align: center;">油溝付</th></tr><tr><td style="border-Right: 0px solid;border-Bottom: 0px solid;">&nbsp;</td><td rowspan="9" style="text-align: left;border-Left: 0px solid;border-Bottom: 0px solid;"><img alt="スライド調整プレート -フリー指定タイプ（油溝なし・油溝付）- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200067040/110200067040_007_20230801115852.gif" /><br /><span class="fontType">SAPS&nbsp;</span>（SKS3）<br /><span class="fontType">SAPM</span>&nbsp;（HPM2T相当）<br />&nbsp;<p style="text-align:left;"><img alt="スライド調整プレート -フリー指定タイプ（油溝なし・油溝付）- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200067040/110200067040_008_20230801115852.gif" /></p><span class="fontType">SAPSM&nbsp;</span>（SKS3）<br /><span class="fontType">SAPMM&nbsp;</span>（HPM2T相当）</td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">1H</span></td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">30～40</span></td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">30～40</span></td><td style="text-align: center;"><span class="fontType">40～50</span></td><td style="text-align: center;"><span class="fontType">5</span></td><td rowspan="9" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType"></span><p style="text-align:center;"><span class="fontType"><img alt="スライド調整プレート -フリー指定タイプ（油溝なし・油溝付）- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200067040/110200067040_001_20230801115852.gif" /></span></p></td><td class="coloredCell" rowspan="9" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;"><p style="text-align:center;"><img alt="スライド調整プレート -フリー指定タイプ（油溝なし・油溝付）- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200067040/110200067040_009_20230801115852.gif" /></p>ℓ＞d<sub>1</sub>+2<br />&nbsp;<p style="text-align:center;"><img alt="スライド調整プレート -フリー指定タイプ（油溝なし・油溝付）- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200067040/110200067040_010_20230801115852.gif" /></p>ℓ＞d<sub>1</sub>+10</td></tr><tr><td style="border-Top: 0px solid;border-Right: 0px solid;border-Bottom: 0px solid;">&nbsp;</td><td style="text-align: center;"><span class="fontType">35～50</span></td><td style="text-align: center;"><span class="fontType">10</span></td></tr><tr><td style="border-Top: 0px solid;border-Right: 0px solid;border-Bottom: 0px solid;">&nbsp;&nbsp;&nbsp;&nbsp;</td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">2H</span></td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">50～70</span></td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">30～50</span></td><td style="text-align: center;"><span class="fontType">40～50</span></td><td style="text-align: center;"><span class="fontType">5</span></td></tr><tr><td style="border-Top: 0px solid;border-Right: 0px solid;border-Bottom: 0px solid;">&nbsp;</td><td style="text-align: center;"><span class="fontType">35～50</span></td><td style="text-align: center;"><span class="fontType">10</span></td></tr><tr><td style="border-Top: 0px solid;border-Right: 0px solid;border-Bottom: 0px solid;">&nbsp;</td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">3H</span></td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">80～120</span></td><td rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">30～60</span></td><td style="text-align: center;"><span class="fontType">40～60</span></td><td style="text-align: center;"><span class="fontType">5</span></td></tr><tr><td style="border-Top: 0px solid;border-Right: 0px solid;border-Bottom: 0px solid;">&nbsp;&nbsp;&nbsp;&nbsp;</td><td style="text-align: center;"><span class="fontType">35～60</span></td><td style="text-align: center;"><span class="fontType">10</span></td></tr><tr><td style="border-Top: 0px solid;border-Right: 0px solid;border-Bottom: 0px solid;">&nbsp;</td><td rowspan="3" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">4H</span></td><td rowspan="3" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">130～150</span></td><td rowspan="3" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">50～80</span></td><td style="text-align: center;"><span class="fontType">70～80</span></td><td style="text-align: center;"><span class="fontType">5</span></td></tr><tr><td style="border-Top: 0px solid;border-Right: 0px solid;border-Bottom: 0px solid;">&nbsp;</td><td style="text-align: center;"><span class="fontType">55～80</span></td><td style="text-align: center;"><span class="fontType">10</span></td></tr><tr><td style="border-Top: 0px solid;border-Right: 0px solid;">&nbsp;</td><td style="text-align: center;"><span class="fontType">60～80</span></td><td style="text-align: center;"><span class="fontType">13</span></td></tr></tbody></table><h3 class="m-h3--wysiwyg">注文例</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="スライド調整プレート -フリー指定タイプ(油溝なし・油溝付)- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200067040/110200067040_004_20230801115852.gif" /></div></div><h3 class="m-h3--wysiwyg">出荷日</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="スライド調整プレート -フリー指定タイプ(油溝なし・油溝付)- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200067040/110200067040_005_20230801115852.gif" /></div></div><h3 class="m-h3--wysiwyg">追加工</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="スライド調整プレート -フリー指定タイプ(油溝なし・油溝付)- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110200067040/110200067040_006_20230801115852.gif" style="width: 777px; height: 154px;" /></div></div>
