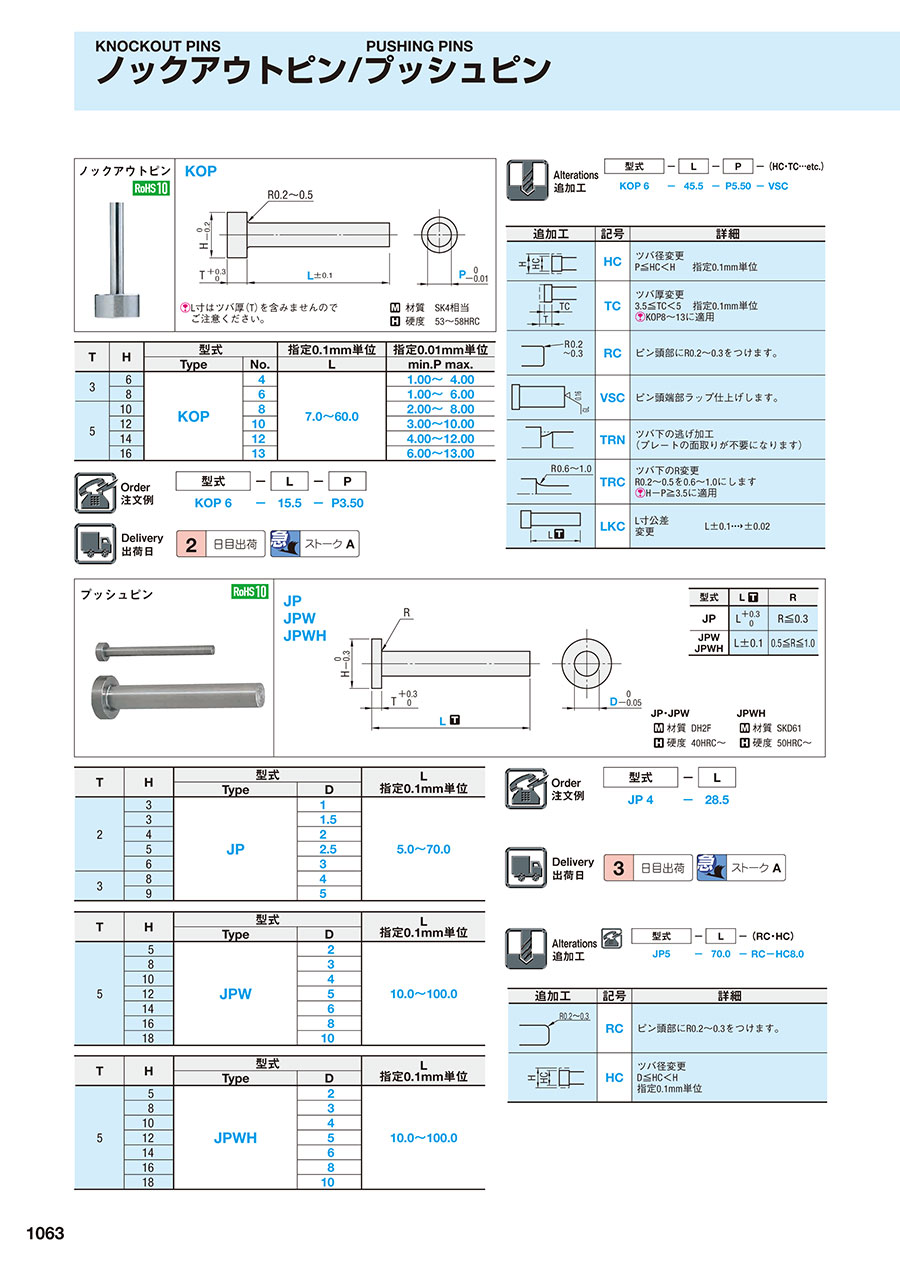

<h3 class="m-h3--wysiwyg">外形図・製品仕様</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="プッシュピン-JP・JPW・JPWH- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110100151030/110100151030_001_20230801115851.gif" /></div></div><table class="m-table u-wauto" summary="プッシュピン-JP・JPW・JPWH- Sheet1"><colgroup><col width="33.3%" /><col width="33.3%" /><col width="33.3%" /></colgroup><tbody><tr><th style="text-align: center;border-Left: 0px solid;">型式</th><th style="text-align: center;">L&nbsp;<span class="m_sp5"></span></th><th style="text-align: center;border-Right: 0px solid;">R</th></tr><tr><td style="text-align: center;border-Left: 0px solid;">JP</td><td class="coloredCell" style="text-align: center;">L+0.3<br />0</td><td class="coloredCell" style="text-align: center;border-Right: 0px solid;">R≦0.3</td></tr><tr><td style="text-align: center;border-Left: 0px solid;">JPW<br />JPWH</td><td class="coloredCell" style="text-align: center;">L&plusmn;0.1</td><td class="coloredCell" style="text-align: center;border-Right: 0px solid;">0.5≦R≦1.0</td></tr></tbody></table><p>JP・JPW<br />&nbsp;<span class="m_sp1"></span>&nbsp;材質&nbsp;&nbsp;DH2F&nbsp;<br />&nbsp;<span class="m_sp3"></span>&nbsp;硬度&nbsp;&nbsp;40HRC～</p><p>JPWH<br />&nbsp;<span class="m_sp1"></span>&nbsp;材質&nbsp;&nbsp;SKD61<br />&nbsp;<span class="m_sp3"></span>&nbsp;硬度&nbsp;&nbsp;50HRC～</p><h3 class="m-h3--wysiwyg">規格表</h3><table class="m-table" summary="プッシュピン-JP・JPW・JPWH- Sheet2"><colgroup><col width="13.9%" /><col width="13.9%" /><col width="13.9%" /><col width="13.9%" /><col width="44.2%" /></colgroup><tbody><tr><th rowspan="2" style="text-align: center;border-Left: 0px solid;border-Bottom: 0px solid;"><span class="u-bold">T</span></th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="u-bold">H</span></th><th colspan="2" style="text-align: center;border-Right: 0px solid;"><span class="u-bold">型式</span></th><th rowspan="2" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;"><span class="u-bold">L</span><br /><span class="u-bold">指定0.1mm単位</span></th></tr><tr><th style="text-align: center;"><span class="u-bold">Type</span></th><th style="text-align: center;"><span class="u-bold">D</span></th></tr><tr><td class="coloredCell" rowspan="5" style="text-align: center;border-Left: 0px solid;border-Bottom: 0px solid;">2</td><td class="coloredCell" style="text-align: center;">3</td><td rowspan="7" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">JP</span></td><td style="text-align: center;"><span class="fontType">1</span></td><td rowspan="7" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;"><span class="fontType">5.0～70.0</span></td></tr><tr><td class="coloredCell" style="text-align: center;">3</td><td style="text-align: center;"><span class="fontType">1.5</span></td></tr><tr><td class="coloredCell" style="text-align: center;">4</td><td style="text-align: center;"><span class="fontType">2</span></td></tr><tr><td class="coloredCell" style="text-align: center;">5</td><td style="text-align: center;"><span class="fontType">2.5</span></td></tr><tr><td class="coloredCell" style="text-align: center;">6</td><td style="text-align: center;"><span class="fontType">3</span></td></tr><tr><td class="coloredCell" rowspan="2" style="text-align: center;border-Left: 0px solid;border-Bottom: 0px solid;">3</td><td class="coloredCell" style="text-align: center;">8</td><td style="text-align: center;"><span class="fontType">4</span></td></tr><tr><td class="coloredCell" style="text-align: center;">9</td><td style="text-align: center;"><span class="fontType">5</span></td></tr><tr><td style="border-Left: 0px solid;border-Right: 0px solid;">&nbsp;</td><td style="border-Left: 0px solid;border-Right: 0px solid;">&nbsp;</td><td style="border-Left: 0px solid;border-Right: 0px solid;">&nbsp;</td><td style="border-Left: 0px solid;border-Right: 0px solid;">&nbsp;</td><td style="border-Left: 0px solid;border-Right: 0px solid;">&nbsp;</td></tr><tr><th rowspan="2" style="text-align: center;border-Left: 0px solid;border-Bottom: 0px solid;"><span class="u-bold">T</span></th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="u-bold">H</span></th><th colspan="2" style="text-align: center;border-Right: 0px solid;"><span class="u-bold">型式</span></th><th rowspan="2" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;"><span class="u-bold">L</span><br /><span class="u-bold">指定0.1mm単位</span></th></tr><tr><th style="text-align: center;"><span class="u-bold">Type</span></th><th style="text-align: center;"><span class="u-bold">D</span></th></tr><tr><td class="coloredCell" rowspan="7" style="text-align: center;border-Left: 0px solid;border-Bottom: 0px solid;">5</td><td class="coloredCell" style="text-align: center;">5</td><td rowspan="7" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">JPW</span></td><td style="text-align: center;"><span class="fontType">2</span></td><td rowspan="7" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;"><span class="fontType">10.0～100.0</span></td></tr><tr><td class="coloredCell" style="text-align: center;">8</td><td style="text-align: center;"><span class="fontType">3</span></td></tr><tr><td class="coloredCell" style="text-align: center;">10</td><td style="text-align: center;"><span class="fontType">4</span></td></tr><tr><td class="coloredCell" style="text-align: center;">12</td><td style="text-align: center;"><span class="fontType">5</span></td></tr><tr><td class="coloredCell" style="text-align: center;">14</td><td style="text-align: center;"><span class="fontType">6</span></td></tr><tr><td class="coloredCell" style="text-align: center;">16</td><td style="text-align: center;"><span class="fontType">8</span></td></tr><tr><td class="coloredCell" style="text-align: center;">18</td><td style="text-align: center;"><span class="fontType">10</span></td></tr><tr><td style="border-Left: 0px solid;border-Right: 0px solid;">&nbsp;</td><td style="border-Left: 0px solid;border-Right: 0px solid;">&nbsp;</td><td style="border-Left: 0px solid;border-Right: 0px solid;">&nbsp;</td><td style="border-Left: 0px solid;border-Right: 0px solid;">&nbsp;</td><td style="border-Left: 0px solid;border-Right: 0px solid;">&nbsp;</td></tr><tr><th rowspan="2" style="text-align: center;border-Left: 0px solid;border-Bottom: 0px solid;"><span class="u-bold">T</span></th><th rowspan="2" style="text-align: center;border-Bottom: 0px solid;"><span class="u-bold">H</span></th><th colspan="2" style="text-align: center;border-Right: 0px solid;"><span class="u-bold">型式</span></th><th rowspan="2" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;"><span class="u-bold">L</span><br /><span class="u-bold">指定0.1mm単位</span></th></tr><tr><th style="text-align: center;"><span class="u-bold">Type</span></th><th style="text-align: center;"><span class="u-bold">D</span></th></tr><tr><td class="coloredCell" rowspan="7" style="text-align: center;border-Left: 0px solid;border-Bottom: 0px solid;">5</td><td class="coloredCell" style="text-align: center;">5</td><td rowspan="7" style="text-align: center;border-Bottom: 0px solid;"><span class="fontType">JPWH</span></td><td style="text-align: center;"><span class="fontType">2</span></td><td rowspan="7" style="text-align: center;border-Right: 0px solid;border-Bottom: 0px solid;"><span class="fontType">10.0～100.0</span></td></tr><tr><td class="coloredCell" style="text-align: center;">8</td><td style="text-align: center;"><span class="fontType">3</span></td></tr><tr><td class="coloredCell" style="text-align: center;">10</td><td style="text-align: center;"><span class="fontType">4</span></td></tr><tr><td class="coloredCell" style="text-align: center;">12</td><td style="text-align: center;"><span class="fontType">5</span></td></tr><tr><td class="coloredCell" style="text-align: center;">14</td><td style="text-align: center;"><span class="fontType">6</span></td></tr><tr><td class="coloredCell" style="text-align: center;">16</td><td style="text-align: center;"><span class="fontType">8</span></td></tr><tr><td class="coloredCell" style="text-align: center;">18</td><td style="text-align: center;"><span class="fontType">10</span></td></tr></tbody></table><h3 class="m-h3--wysiwyg">注文例</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="プッシュピン-JP・JPW・JPWH- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110100151030/110100151030_002_20230801115851.gif" /></div></div><h3 class="m-h3--wysiwyg">出荷日</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="プッシュピン-JP・JPW・JPWH- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110100151030/110100151030_003_20230801115851.gif" /></div></div><h3 class="m-h3--wysiwyg">追加工</h3><div class="m-thumbnail"><div class="m-thumbnail__img has-border" data-autoheight="item"><img alt="プッシュピン-JP・JPW・JPWH- " src="//content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110100151030/110100151030_004_20230801115851.gif" /></div></div>
